- DN15 ~ DN600
- PN16 (Class 150)
- -46°C ~ +550°C
- API 600, API 6D, ANSI B16.34, DIN 3352, BS 5163
- Ductile iron, WCB, CF8M
- Elastic wedge (matching body)
- Resilient seated (rubber/PTFE)
Specification

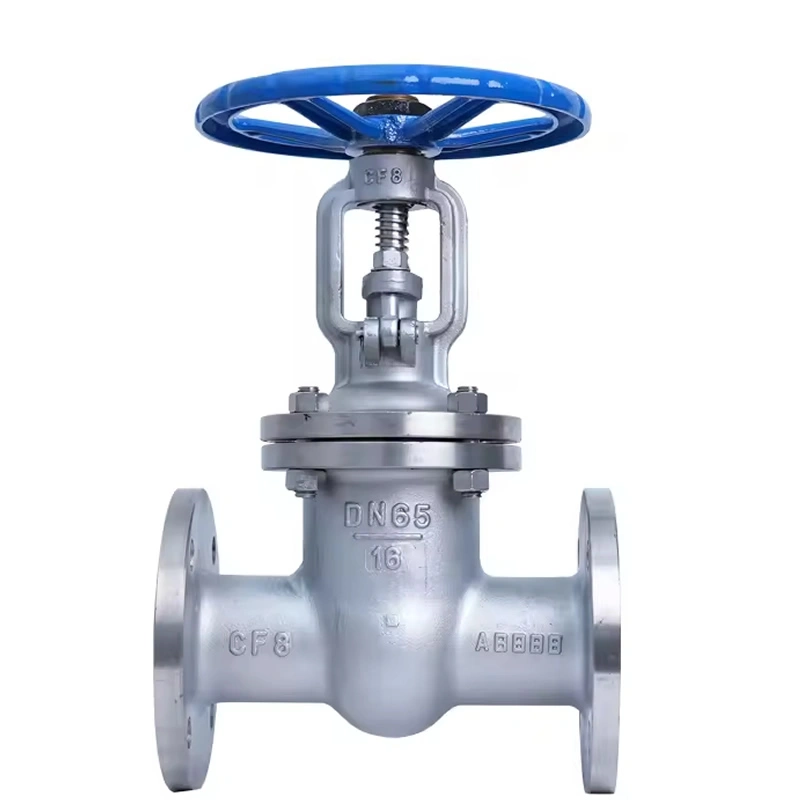

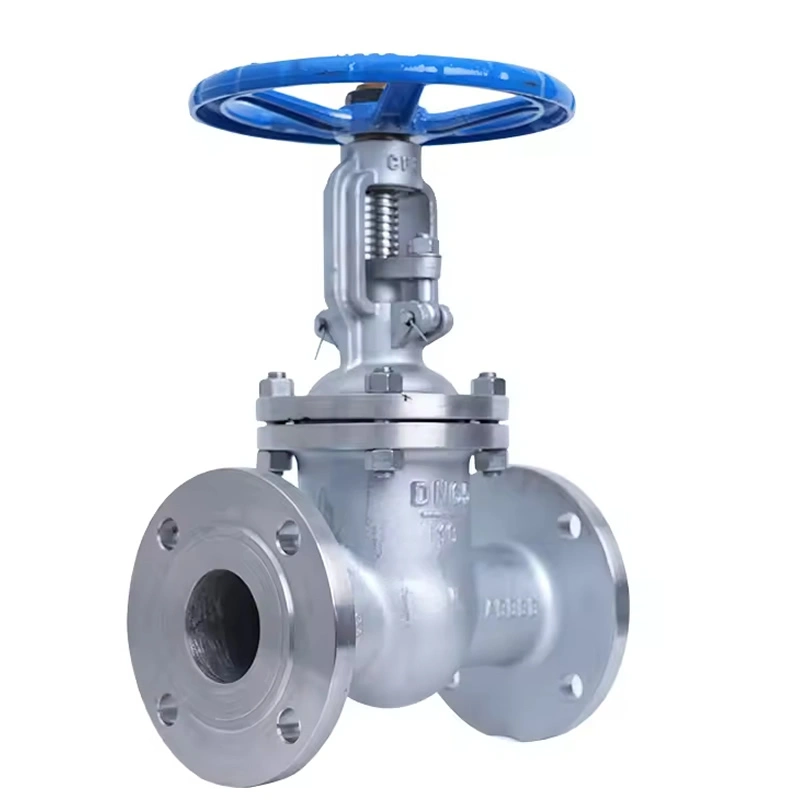

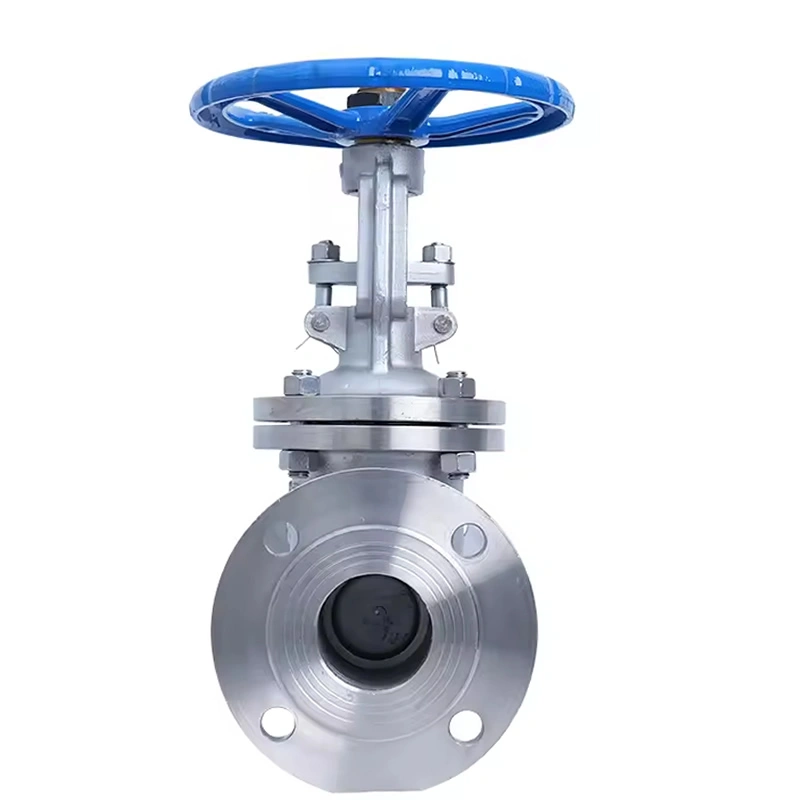

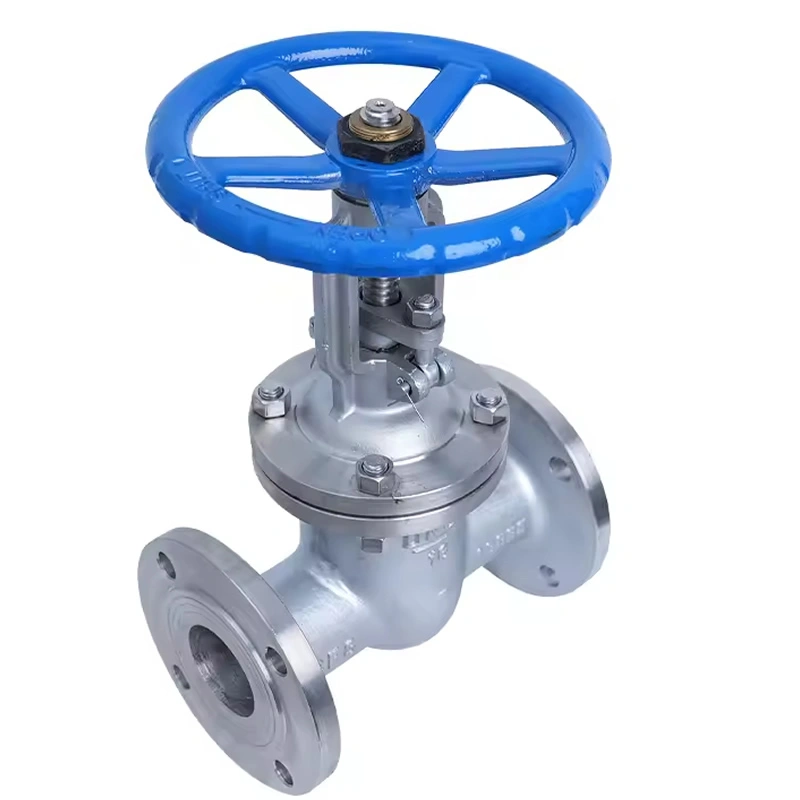

DN15~DN600 PN16 Ductile Iron Resilient Seated Flange Gate Valve
I. Product Overview
NEWWAY resilient seated flange gate valve is a robust flow control solution engineered for water supply, industrial pipelines, and medium-pressure systems. Crafted with ductile iron, WCB carbon steel, or stainless steel (CF8M), it features a resilient seated design and flange connection to ensure reliable shut-off and flow regulation. Compliant with API 600, API 6D, and ANSI standards, it operates across -46℃~550℃ (depending on material) and handles water, oil, steam, and mild corrosive media. With a full-port design and outside screw & yoke (OS&Y) structure, it balances sealing performance, durability, and ease of maintenance—ideal for municipal water supply, petrochemical, and power generation industries where stable flow control is critical.
|
Design Spec. |
Face to Face |
Flange End |
Test & Check |
Pressure-Temp |
Marking |
Supply |
|
API600 |
ANSFB16.10 |
ANSI B16.5 |
API598 |
ANSI B16.34 |
API6D |
API600 |
|
API6D |
API6D |
API6D |
MSS SP-25 |
|
Part Name |
Part Material |
|||
|
Body/Bonnet |
A216-WCB |
A217-WC6 |
A352-LCB |
A351-CF8M |
|
Wedge |
A216-WCB |
A217-WC6 |
A352-LCB |
A351-CF8M |
|
Stem |
A182-F6a |
A182-F11 |
A182-F6a |
A182-F316 |
|
Packing |
Flexible Graphite |
PTFE |
||
|
Gasket |
18-8Flexibie Graphite |
|||
|
Bolt |
A193-B7 |
A193-B7 |
A193-B7M |
A193-B8 |
|
Suitable Temp. |
-29~425℃ |
-29~550℃ |
-46~350℃ |
-40~200℃ |
|
Suitable Medium |
Water,Oil,Steam |
Steam,Oil |
Steam,Oil |
Nitric Acid |
|
NPS |
DN |
Ciass 150Lb |
|||||||
|
in |
mm |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
Do |
|
|
Z40H-150Lb (Body:WCB) |
Z40W-150LbP (Body:CF8) |
Z40Y-150LьP (Body:CF8) |
Z40Y-150LbR (Body:CF8M) |
Z40Y-150LbR (Body:CF8M) |
Z40Y-150LbRLS（Body:CF3M） |
|||
|
1/2” |
15 |
108 |
89 |
60.5 |
35 |
11.5 |
4-Φ15 |
155 |
900 |
|
3/4” |
20 |
117 |
98 |
70 |
43 |
11.5 |
4-Φ15 |
160 |
900 |
|
1” |
25 |
127 |
108 |
79.5 |
51 |
12 |
4-Φ15 |
200 |
100 |
|
11/4” |
32 |
140 |
117 |
89 |
64 |
13 |
4-Φ15 |
245 |
180 |
|
11/2” |
40 |
165 |
127 |
98.5 |
73 |
15 |
4-Φ15 |
285 |
200 |
|
2” |
50 |
178 |
152 |
120.5 |
92 |
16 |
4-Φ19 |
323 |
200 |
|
21/2” |
65 |
190 |
178 |
139.5 |
105 |
18 |
4-Φ19 |
347 |
250 |
|
3” |
80 |
203 |
190 |
152.5 |
127 |
19 |
4-Φ19 |
383 |
250 |
|
