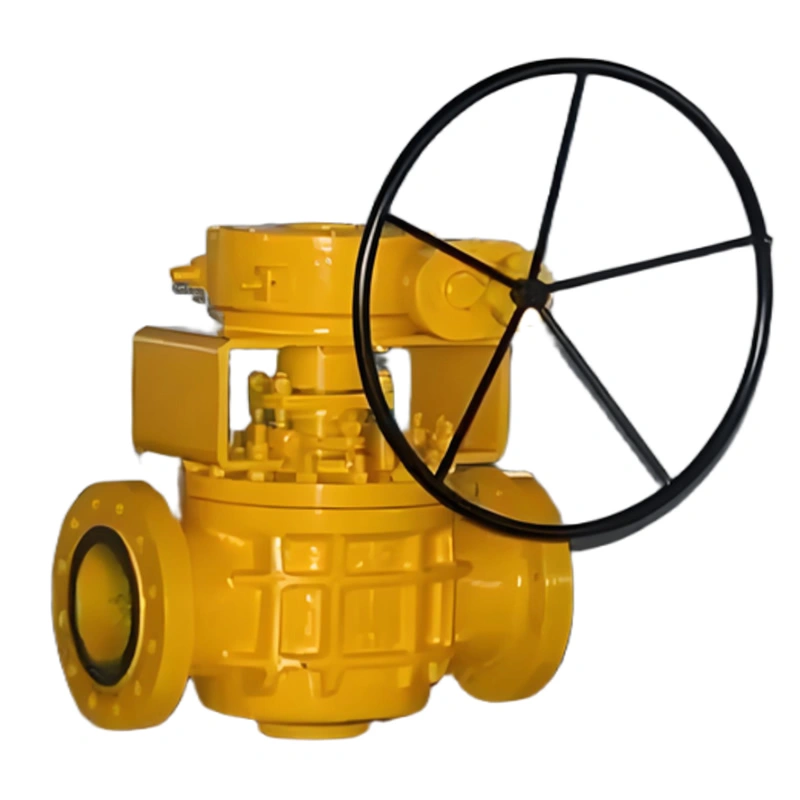

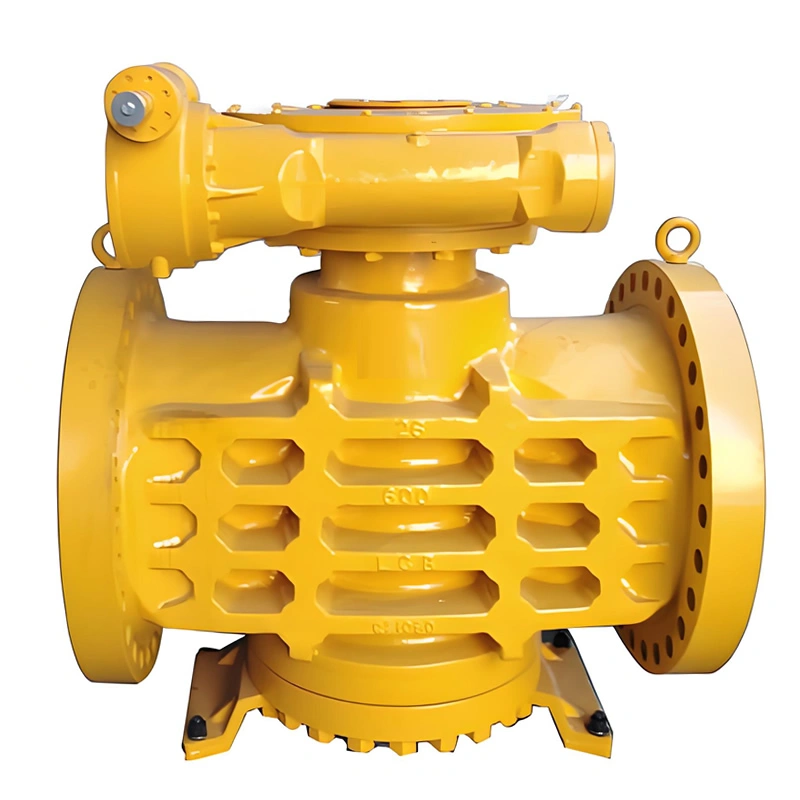

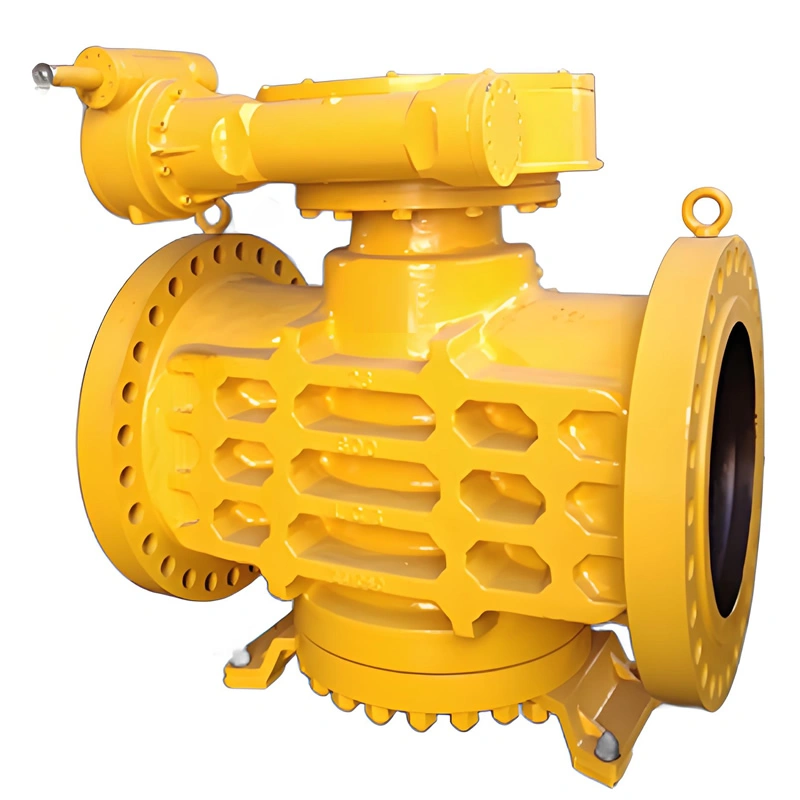

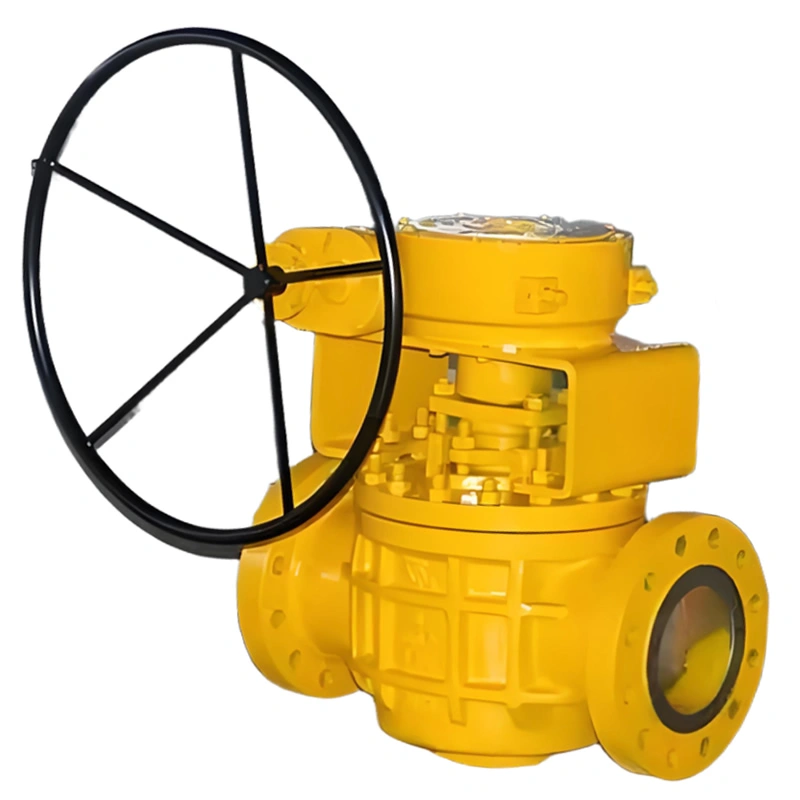

NEWWAY ASME Pressure Balanced Inverted Hard Seal Manual Plug Valve

I. Product Overview

NEWWAY American standard pressure balanced inverted hard seal manual plug valve is a precision-engineered industrial valve designed for reliable fluid control in diverse operating environments. Characterized by its inverted pressure balance structure, this valve combines rational design, robust sealing performance, and efficient operation to meet the demands of low, medium, and high-pressure systems. Crafted for versatility, it serves as a critical component in general industrial applications where manual flow regulation, tight sealing, and ease of operation are paramount. Whether integrated into water management systems, process pipelines, or industrial fluid circuits, the valve delivers consistent performance, ensuring operational stability and long-term reliability.

II. Key Attributes and Specification Parameters

1. Basic Attributes

Structure: Features an inverted pressure balance design with a plug-type structure, optimized to reduce switching resistance and enhance operational efficiency. This design ensures that pressure forces are balanced during operation, minimizing the effort required for manual adjustment.

Operation Mode: Manual operation, providing straightforward and direct control over fluid flow. The manual mechanism is engineered for smooth handling, allowing precise adjustment even in repeated use scenarios.

Material: Constructed with high-quality materials suitable for hard sealing applications, ensuring durability and resistance to wear. The choice of materials is tailored to maintain sealing integrity across varying temperatures and pressure conditions, with a focus on compatibility with water and other general industrial fluids.

Pressure Range: Capable of operating in low, medium, and high-pressure environments, making it adaptable to a wide spectrum of industrial systems without compromising performance.

Size Range: Available in sizes from 1/4 inch to 2-1/2 inch, catering to different pipeline dimensions and flow rate requirements in general industrial setups.

Temperature Compatibility: Designed to handle media temperatures across low, medium, and normal ranges, ensuring stability in environments where temperature fluctuations are common.

Media Compatibility: Primarily suited for water, with broader applicability to other non-corrosive or mildly corrosive general industrial fluids, enhancing its versatility in diverse operational contexts.

Warranty: Backed by a 1-year warranty, underscoring its reliability and providing assurance for industrial users seeking consistent performance.

2. Core Specification Parameters

Application: General industrial fluid control systems

Place of Origin: Henan, China

Sealing Type: Hard seal, ensuring tight and reliable closure to prevent leakage

Design Standard: Conforms to American standards, aligning with international industrial norms for compatibility and performance

Customization Scope: (Details excluded in this section as per requirements)
