DN100~DN800 PN16 Cast Iron/Stainless Steel PTFE Seal Electric Flange Butterfly Valve

I. Product Overview

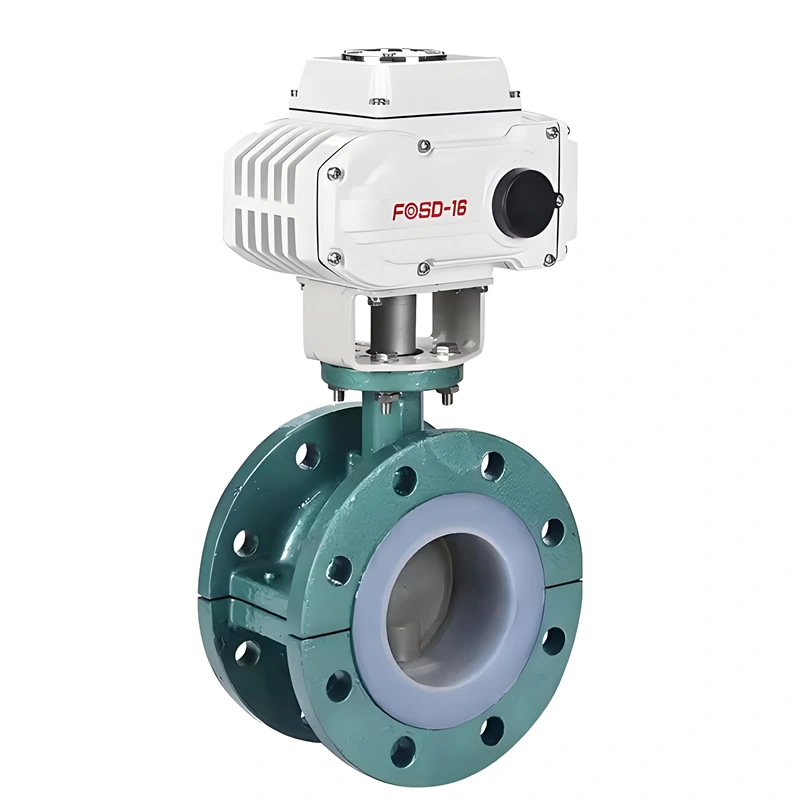

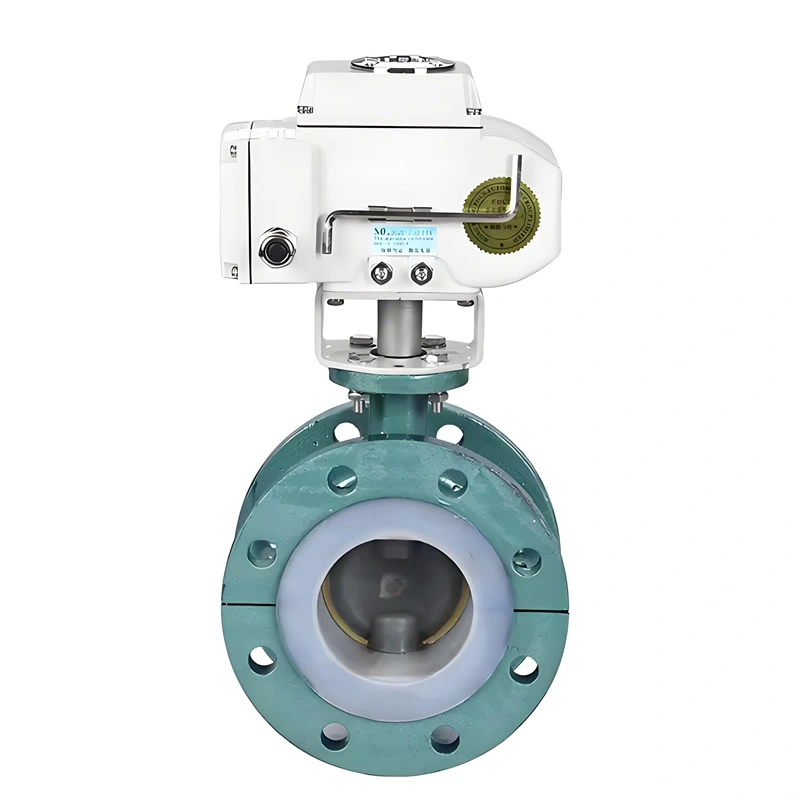

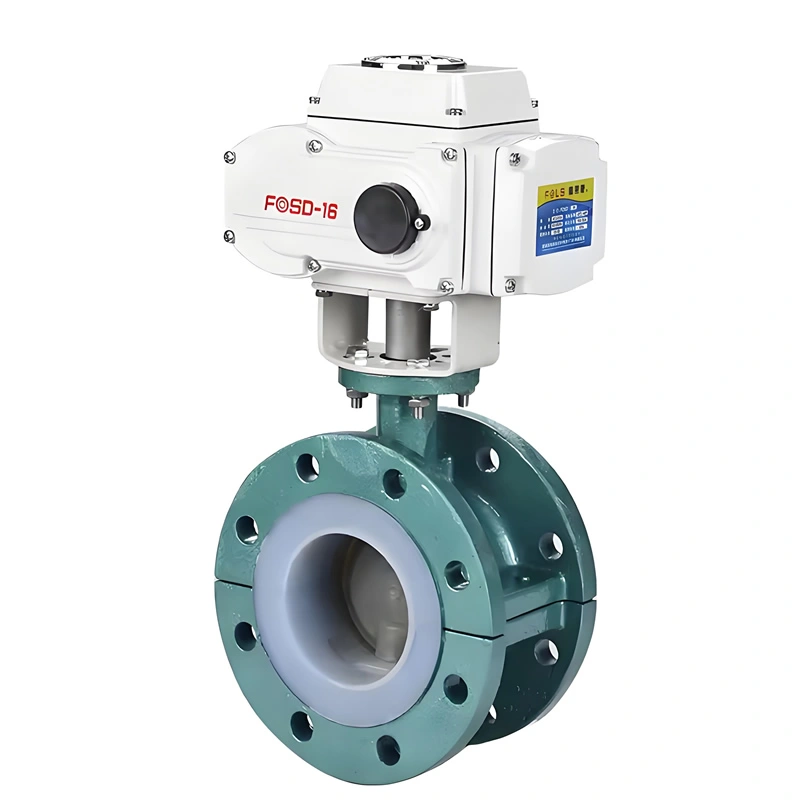

Newway PTFE seal electric flange butterfly valve is a versatile flow control solution engineered for industrial and municipal systems. Combining cast iron/WCB/stainless steel body with PTFE sealing, it integrates electric actuation to deliver reliable shut-off and regulation of water, air, gas, oil, and mild corrosive media. Designed for high-temperature environments (≤200℃) and medium pressure (PN1.6MPa), it features a flange connection for secure pipeline integration. Compliant with ISO9001 and CE standards, it balances durability, sealing performance, and automated precision—ideal for water treatment, petrochemical, power, and food & beverage industries where efficient flow control and low maintenance are critical.

II. Key Attribute Parameters

Size Range: DN100 ~ DN800, covering medium to large-diameter pipelines for industrial water distribution, process control, and drainage systems.

Pressure Rating: PN1.6MPa, suitable for low to medium pressure loops such as boiler feedwater, hot water pipelines, and chemical transfer lines.

Temperature Range: ≤200℃, compatible with PTFE seals to handle high-temperature media like steam and hot oil without seal degradation.

Material Configuration:

Body: Cast iron (QT450), WCB carbon steel, or stainless steel (1Cr18Ni9Ti)—cast iron for cost-effectiveness, stainless steel for corrosion resistance.

Disc: QT450, WCB, or 1Cr18Ni9Ti, matching body material for structural consistency and wear resistance.

Seal: PTFE (polytetrafluoroethylene) with flexible graphite backup, ensuring chemical resistance and tight sealing across temperature ranges.

Stem: 1Cr18Ni9Ti stainless steel, resisting rust and ensuring smooth rotation under pressure.

Actuator: Electric (FOSD series), with voltage options: DC12V~24V, AC12V, AC24V, AC110V, AC220V, AC380V; supports on-off, regulating, and intelligent control.

Connection Type: Flange (per JIS, ASME, DIN, ISO standards), enabling leak-tight integration with pipeline flanges.

Operation: 0~90° rotation, with rated travel time of 15/20/30S for precise flow adjustment; optional accessories include limit switches and positioners.

FEATURE

1. Operating temperature range: -40°C-+95°C.
2. With excellent strength and toughness.
3. With excellent chemical resistance capabilities.
4. Retardant properties is the self-extinguishing.
5. Low thermal conductivity, about 1/200 of the steel.
6. The content of heavy ion in the medium up to the ultra-pure water standards.
7. Health indicators in line with national health standards.
8. Clean and smooth of the Tube wall, which can generate a smaller friction and adhesion when transferring fluid.
9.Light weight, the equivalent of 1/5 of steel, 1/6 of brass.
10. Easy to install. can be connected by flange, double union etc.
11.Excellent anti-aging and UV resistance, so that there is a great extension of the normal useful life than other piping systems.

Product Overview

III. Features Description

PTFE Seal Reliability: PTFE’s chemical inertness resists water, oil, and mild acids/alkalis, while its low friction coefficient reduces wear during operation. The seal is reinforced with flexible graphite to maintain elasticity at high temperatures (≤200℃), achieving ANSI/FCI Class IV leakage (≤0.1% of flow)—critical for preventing media loss in water treatment or food processing.

Electric Actuation Precision: The electric actuator offers programmable control (on-off/regulating), with position feedback to ensure accurate flow adjustment. Intelligent models support remote monitoring and automatic calibration, reducing manual intervention in large-scale systems like power plant steam loops.

Flange Connection Stability: Flange design distributes pressure evenly across the valve body, avoiding leakage in high-pressure (PN1.6MPa) applications. It complies with multiple standards (JIS/ASME/DIN), simplifying integration into global projects without rework.

Durable Structural Design: One-piece stem and disc reduce torque requirements, while stainless steel composite bearings ensure smooth rotation. The valve body undergoes anti-corrosion treatment (painting for cast iron, passivation for stainless steel), extending service life in humid or industrial environments.

Wide Compatibility: Adaptable to diverse media (water, steam, oil, gas) and temperatures, with material options (cast iron for general use, stainless steel for corrosive media) to match application needs—eliminating the need for multiple valve types in complex systems.

IV. Manufacturing Processes

Material Preparation: Cast iron/WCB/stainless steel castings undergo ultrasonic testing to detect internal defects. PTFE sheets are inspected for uniformity (no cracks or impurities) to ensure sealing performance.

Body & Disc Machining: CNC lathes precision-machine valve bodies and discs to tight tolerances (±0.05mm), ensuring concentric alignment of the disc with the flow path. Flange faces are finished to Ra ≤1.6μm for leak-tight gasket sealing.

Seal Assembly: PTFE seals are molded to match the valve’s inner diameter, then bonded to the body with high-temperature adhesive. Flexible graphite is layered behind the PTFE to enhance compression and sealing under pressure.

Actuator Integration: Electric actuators are mounted via ISO5211 flanges, with stem-coupling alignment calibrated to ±0.5° to avoid jamming. Actuators undergo 5,000+ cycle tests to verify travel accuracy and torque output.

Testing:

Hydrostatic Test: Body tested at 2.4MPa (1.5×PN1.6) for 30 minutes; seat tested at 1.76MPa (1.1×PN1.6) with water to confirm no leakage.

Operation Test: Actuator tested for travel time (15/20/30S) and position accuracy (±1°) to ensure consistent performance.

High-Temp Test: Valve exposed to 200℃ for 2 hours, then operated to verify seal integrity and actuator functionality.
