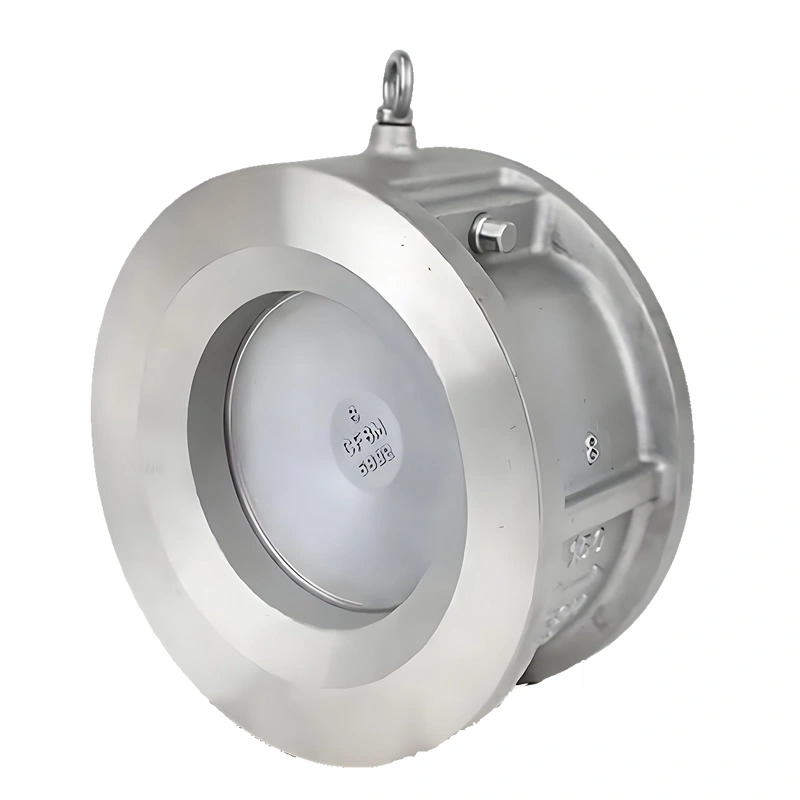

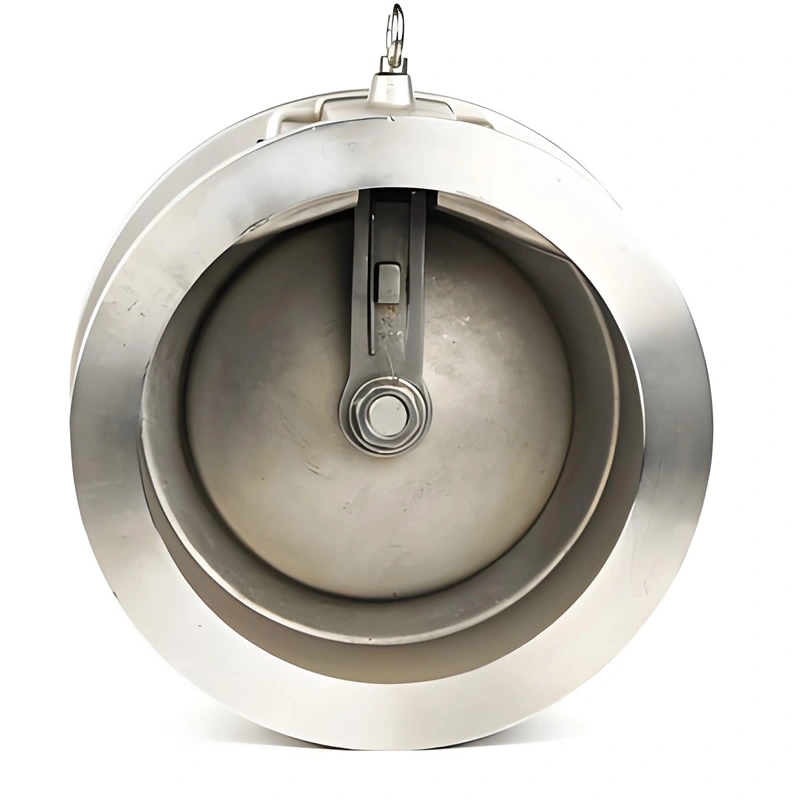

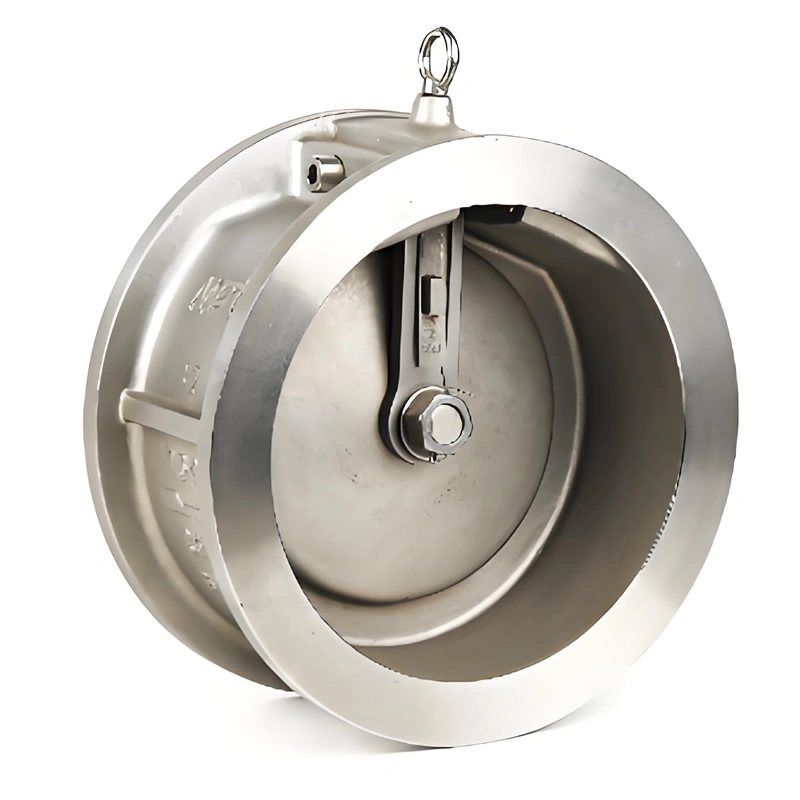

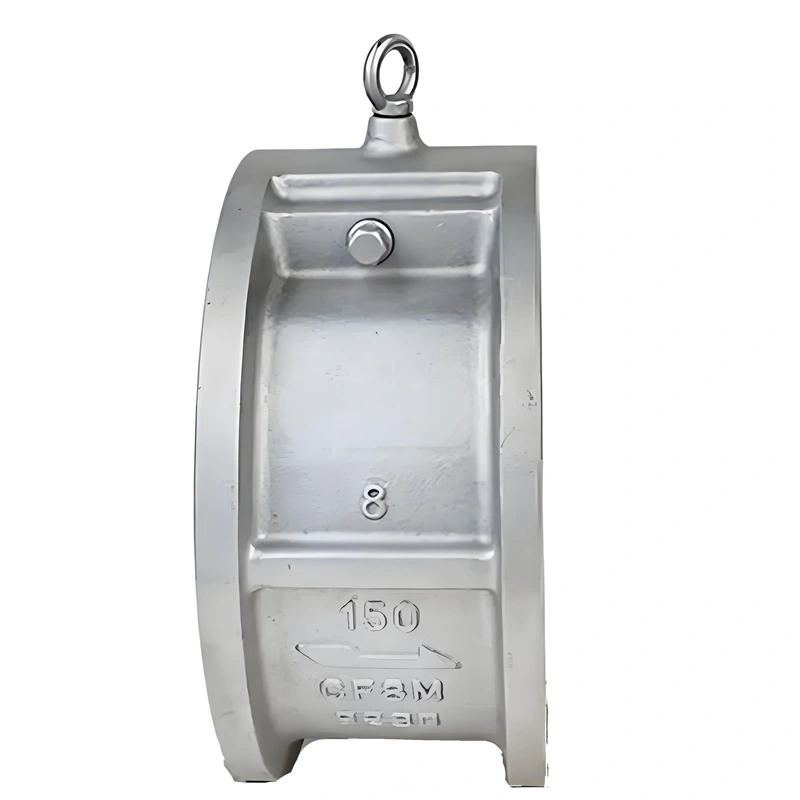

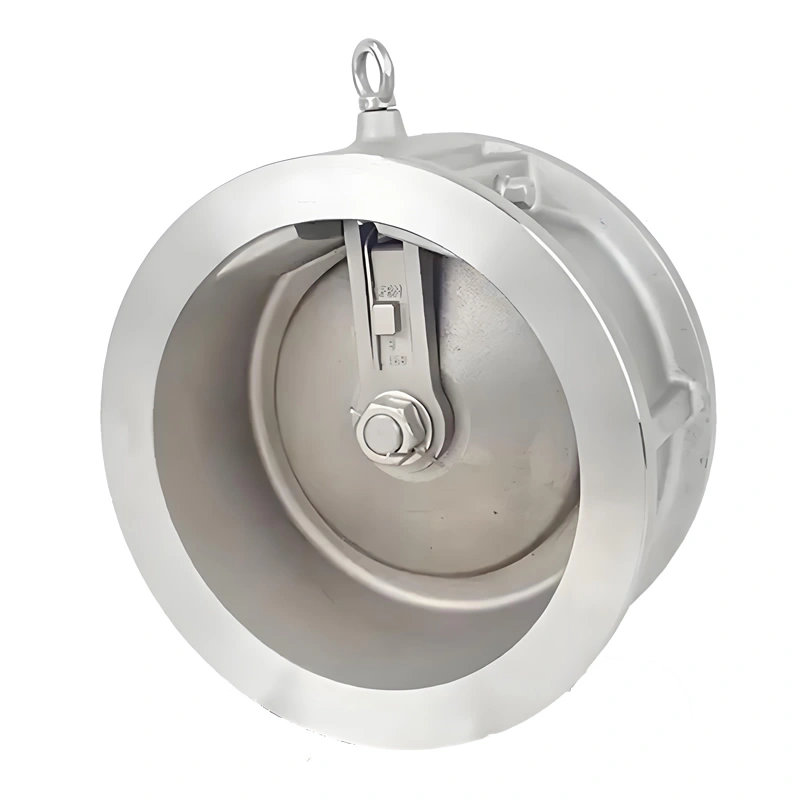

DN100 PN16 Cast Steel Wafer Type Single Disc Swing Check Valve

I. Product Overview

NEWWAY DN100 PN16 cast steel wafer type single disc swing check valve is a specialized backflow prevention solution engineered for industrial pipelines. Crafted with cast steel (QT450/WCB) and featuring a wafer-type structure, it relies on a single swing disc to ensure unidirectional flow of water, gas, oil, and mild corrosive media (acids, alkalis). Operating across -196℃~550℃ and PN16 pressure, it closes automatically when flow reverses, protecting pumps, valves, and system components from damage. Compliant with GB, API, and DIN standards, it balances compact design, durability, and reliable backflow prevention—ideal for petroleum, chemical, water supply, and hydraulic systems where space-saving and safety are critical.

II. Key Attribute Parameters

Size: DN100 (4″), optimized for medium-diameter pipelines in industrial flow control systems.

Pressure Rating: PN16 (1.6MPa), suitable for low to medium pressure applications such as water distribution and oil transfer lines.

Temperature Range: -196℃~550℃, with cast steel (WCB) handling high temperatures and stainless steel (304/316) adapting to extreme cold or corrosive environments.

Material Configuration:

Body: Cast steel (QT450/WCB) for structural strength; optional 304/316 stainless steel for corrosion resistance.

Disc & Hinge: Cast steel or stainless steel, ensuring smooth swing movement and wear resistance.

Seal: Metal-to-metal (for high temperature) or PTFE-lined (for tight shut-off), preventing leakage under pressure.

Fasteners: High-strength alloy steel, resisting vibration and pressure-induced loosening.

Connection Type: Wafer type, fitting between pipeline flanges to save installation space without flanges on the valve body.

Applicable Media: Water, gas, oil, acid, alkali, and hydraulic fluids.

Design Standards: GB, API 6D, DIN, ensuring compatibility with global industrial systems.
