- 1/2″-2″,DN15-DN50
- Stop valve
- BSPT,Optional(NPT, BSP, BSPP)
- Stainless Steel,A105,LF2,F11,F304(L),F316(L),F5,F22,Carbon steel etc
- - 20℃ ~ + 425°C
- JIS10-20K,API607,ANSI150-1500LB,16-160Bar,PN16-160,PN16,200WOG
Specification

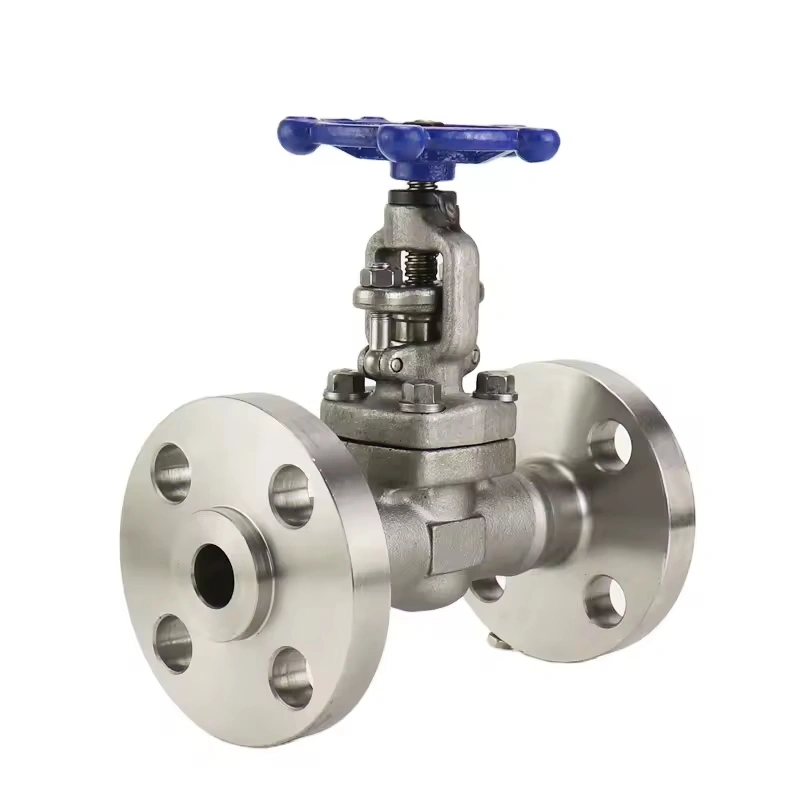

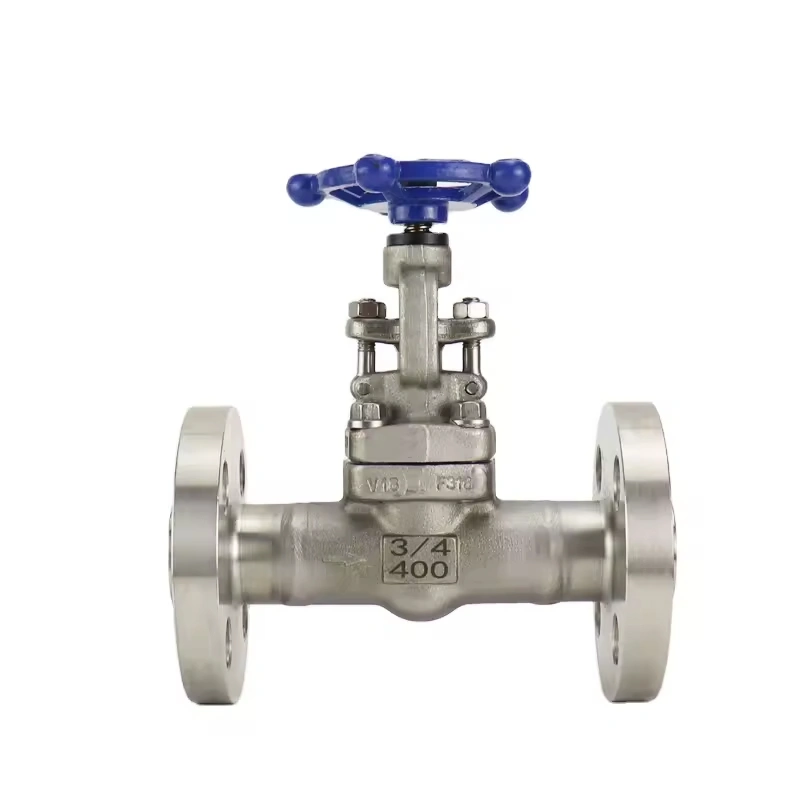

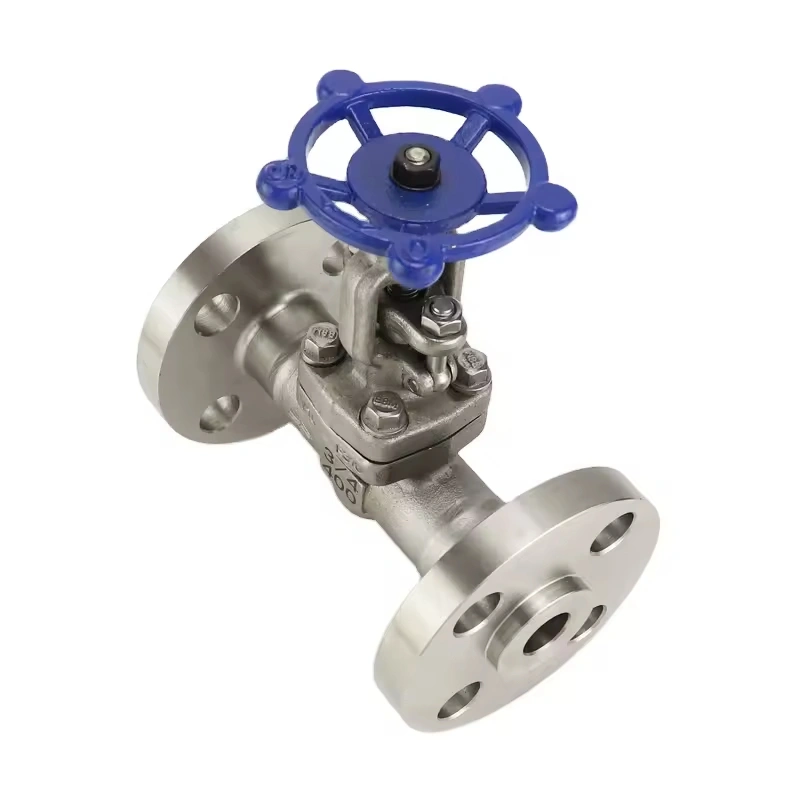

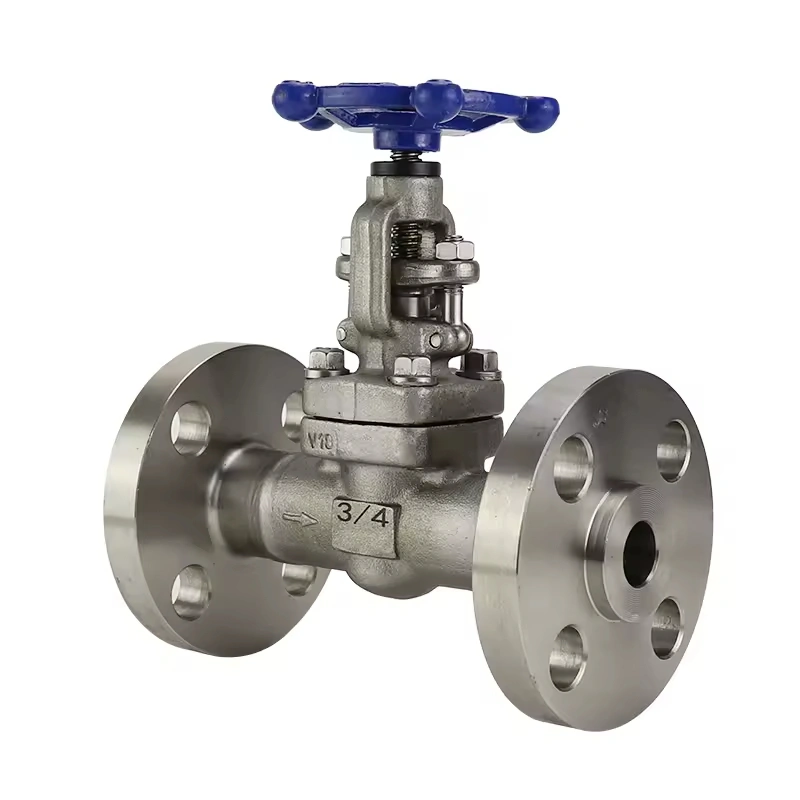

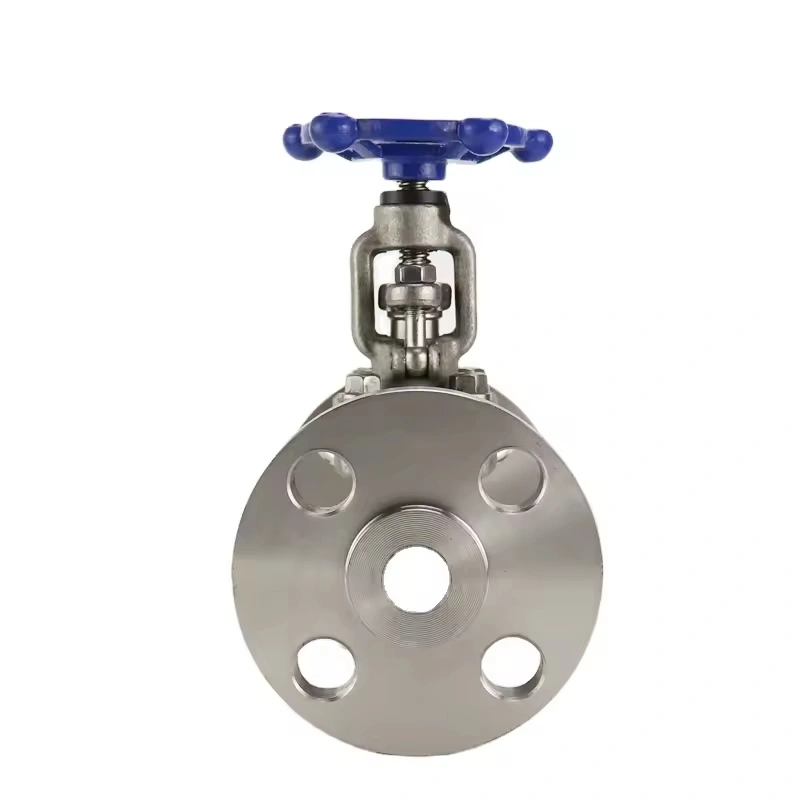

High Quality Water Oil Gas Manual Stainless Steel Forged Globe Valve
I. Product Overview
NEWWAY forged stainless steel globe valves feature A182 F304/F316 forged stainless steel bodies, compliant with ASME B16.34 standards for Class 600 (PN100) high-pressure applications. The lift-type disc enables flow cutoff and regulation, covering DN15-DN50 (1/2″-2″) with -20℃~425℃ temperature resistance for water, oil, and gas in high-pressure pipelines. Forged construction and dual sealing ensure reliable operation in petrochemical, power, and metallurgical industries.
II. Core Technical Parameters
Specifications & Pressure-Temperature Range
Nominal Diameter: DN15/20/25/32/40/50 (1/2″-2″)
Pressure Class: Class 600 (PN100, 10.0MPa), compatible with Class 150-1500LB
Temperature Range: -20℃~425℃ (standard), -196℃~600℃ (special materials)
Materials & Sealing System
Body/Bonnet: A182 F304/F316 forged stainless steel (tensile strength ≥515MPa)
Disc/Seat: 304 with STL alloy overlay (HRC58-62), sealing surface roughness Ra≤0.2μm
Packing: V-type flexible graphite + PTFE, leakage rate ≤1×10⁻⁶cc/s (API 598)
Connections: Flanged (RF face, ASME B16.5), threaded (NPT, API 5B)
Actuation & Operation
Actuation: Manual (gear handwheel standard), electric (explosion-proof actuator), pneumatic
Operating Torque: DN50 manual ≤80N·m, electric actuation time ≤8s
Protection Grade: IP65 (body), Ex d IIB T4 (explosion-proof)
