Design Standards: API 6D, API 608, ISO 17292, ensuring compliance with global pipeline and cryogenic valve specifications.

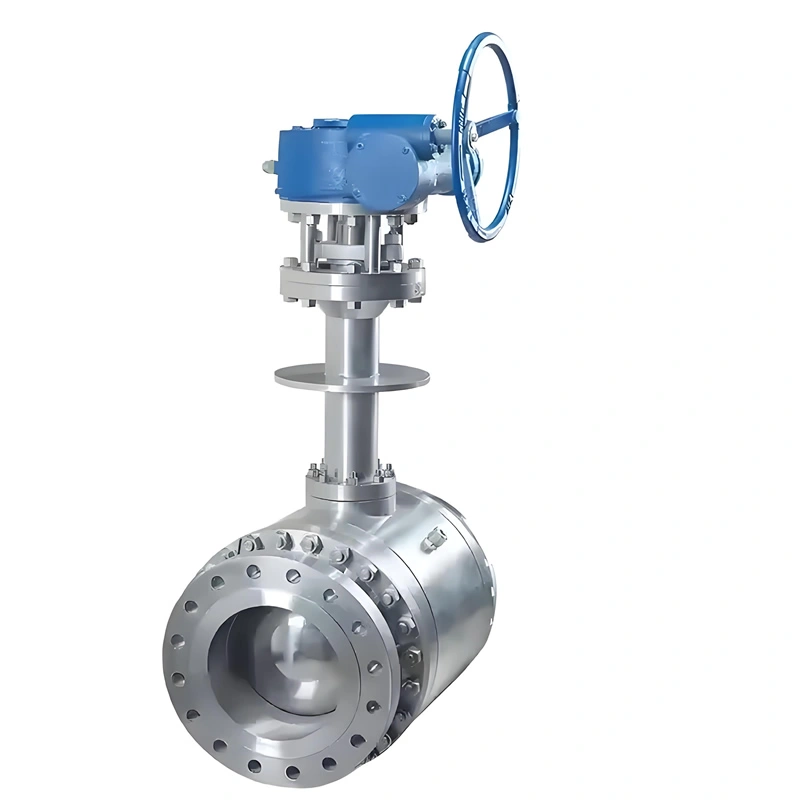

Product Overview
III. Features Description
Three-Piece Structure: The valve body is divided into three detachable sections (two end caps + middle section), allowing in-line maintenance of internal components (ball, seats, stem) without removing the valve from the pipeline. This reduces downtime in critical systems like LNG transfer lines, where shutdowns are costly.
Trunnion Mounted Ball: The ball is supported by upper and lower trunnions, distributing pressure evenly to prevent seat extrusion under Class 300 pressure. This design eliminates “ball floating”—a common issue in high-differential-pressure systems—ensuring stable sealing even with fluctuating cryogenic media flow.
Cryogenic Metal Seal: The metal-to-metal seal is coated with a low-temperature alloy (e.g., nickel-chromium-molybdenum) to retain elasticity at -196℃, avoiding brittleness that causes leakage in standard metal seals. Precision lapping (Ra ≤0.4μm) ensures uniform contact, achieving ANSI/FCI Class VI leakage (near-zero) in cryogenic service.
F316 Corrosion Resistance: Molybdenum in F316 resists pitting and crevice corrosion from seawater (offshore LNG terminals) and acidic cryogens (e.g., liquid CO₂), eliminating rust-related failures and extending service life in harsh environments.
Manual Gear Actuation: The gearbox reduces operating torque by 50%, enabling one-person operation of 12″ valves. A position indicator provides clear open/close feedback, critical for precise control in LNG loading/unloading operations.
IV. Manufacturing Processes
Material Validation: F316 forgings undergo ultrasonic testing to detect internal defects. Charpy impact tests at -196℃ verify toughness (≥27J), ensuring resistance to cold-induced fracture. Spectral analysis confirms alloy composition to guarantee corrosion resistance.
Three-Piece Machining: CNC lathes precision-machine body sections to tight tolerances (±0.05mm), ensuring seamless alignment when bolted. Flange faces are finished per ASME B16.5 to ensure leak-tight gasket sealing.
Trunnion & Ball Finishing: Trunnions are ground to concentricity with the ball (±0.02mm) to minimize friction. The ball’s sealing surface is lapped with the seat under cryogenic conditions (-196℃) to simulate real-world operation, ensuring uniform contact at extreme cold.
Seal Coating Application: The metal seal is plasma-sprayed with cryogenic alloy (100-150μm thickness), then polished to Ra ≤0.8μm to enhance sealing efficiency. This coating retains flexibility at -196℃, preventing cracking during thermal cycling.
Testing:
Hydrostatic Test: Body tested at 1.5×Class 300 (7.5MPa) for 30 minutes; seats tested at 1.1×Class 300 (5.5MPa) with water.
Cryogenic Immersion Test: Valve submerged in liquid nitrogen (-196℃) for 2 hours, then operated to confirm seal integrity and smooth rotation.
Leakage Test: Helium leak detection at -196℃ verifies rate ≤1×10⁻⁹ Pa·m³/s, meeting cryogenic safety standards.

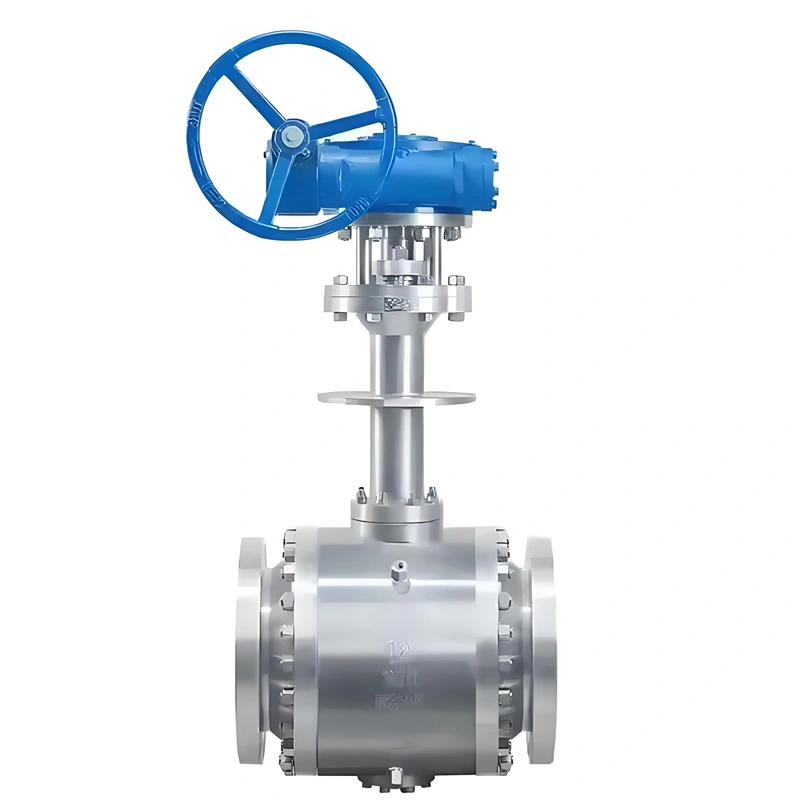

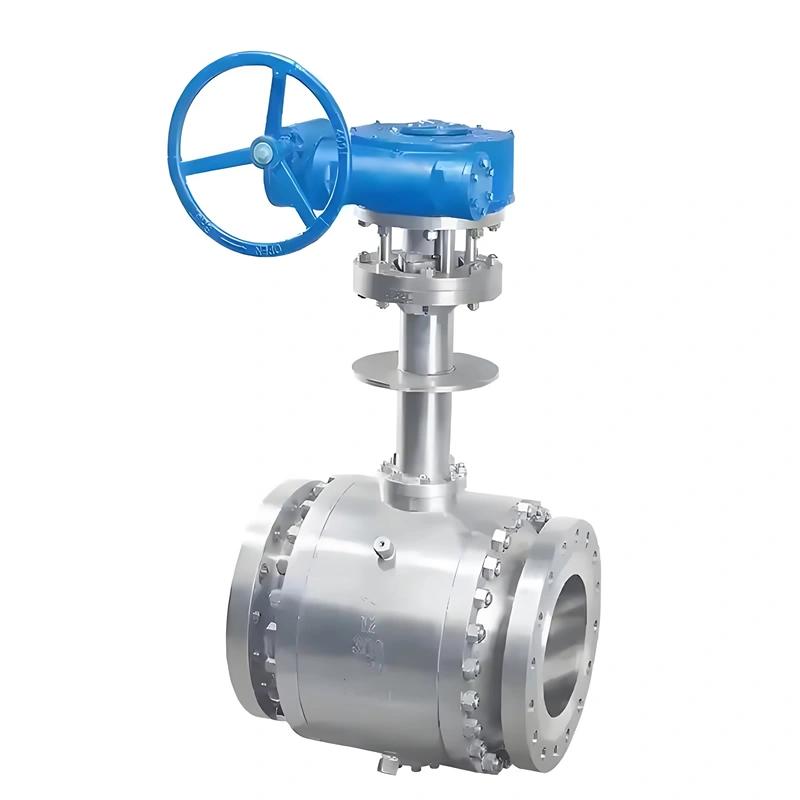

Valve Details
V. Product Advantages
Extreme Cryogenic Reliability: Operates at -196℃ without brittleness, outperforming standard stainless steel valves in LNG, liquid nitrogen, and liquid oxygen systems.
In-Line Maintenance: Three-piece design allows component replacement without pipeline removal, reducing downtime by 60% compared to one-piece valves in critical cryogenic loops.
High-Pressure Stability: Trunnion mounting prevents seat extrusion under Class 300 pressure, ensuring consistent sealing in fluctuating flow environments (e.g., LNG tank filling).
Corrosion Resistance: F316 with molybdenum resists harsh media, extending service life by 30% in coastal or chemical cryogenic applications.
API Compliance: Meets API 6D/608 standards, including fire-safe performance (API 6FA), ensuring compatibility with global oil & gas and cryogenic projects.

Application
VI. Application Fields
LNG Infrastructure: Controls LNG transfer between storage tanks, trucks, and ships, withstanding -162℃ (LNG boiling point) and high transfer pressures.
Cryogenic Processing: Regulates liquid nitrogen, oxygen, and argon in medical, metallurgical, and food freezing systems, ensuring precise flow control at extreme cold.
Chemical Industry: Manages low-temperature reactants (e.g., liquid CO₂, refrigerants) in pharmaceutical and specialty chemical production, leveraging F316’s corrosion resistance.
Natural Gas Processing: Handles cryogenically cooled natural gas in fractionation plants, where high pressure and low temperatures require robust sealing.
Energy Sector: Used in LNG-fired power plants to control fuel flow from storage to combustion systems, withstanding temperature swings from -162℃ to 150℃.
