Specification

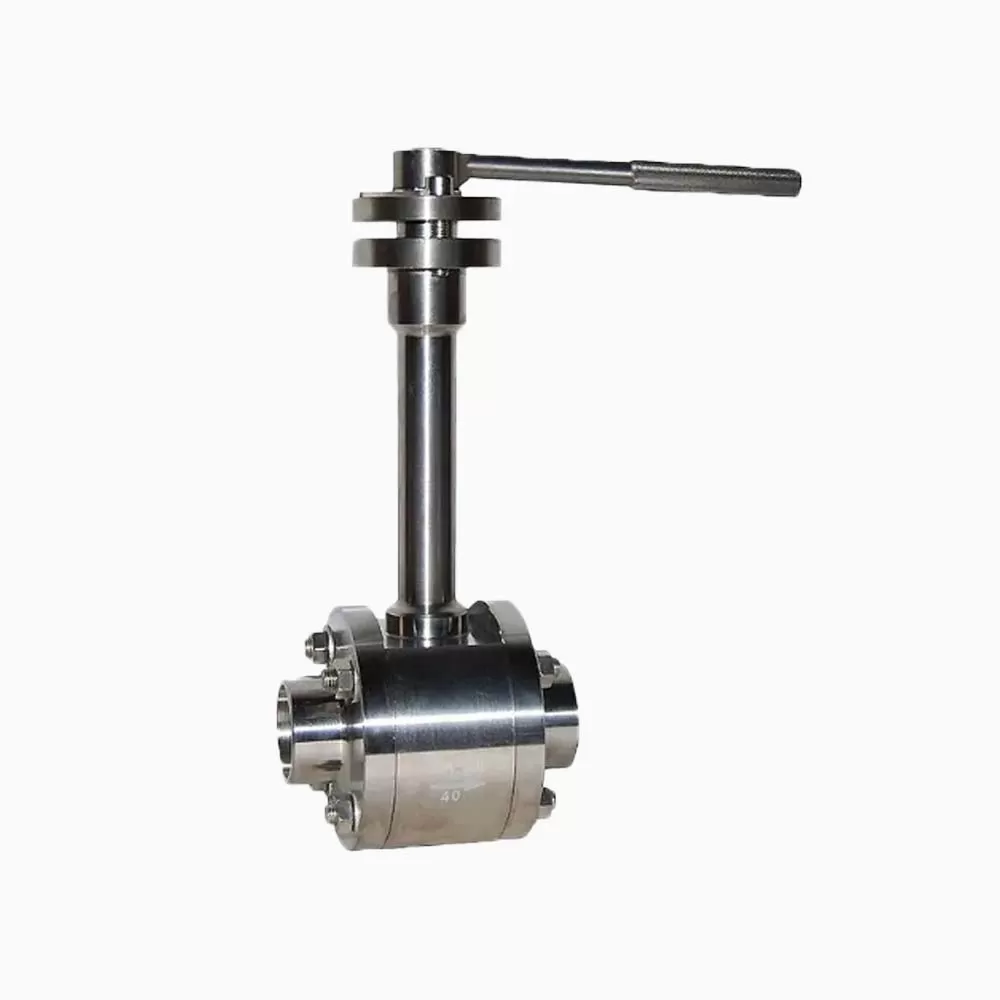

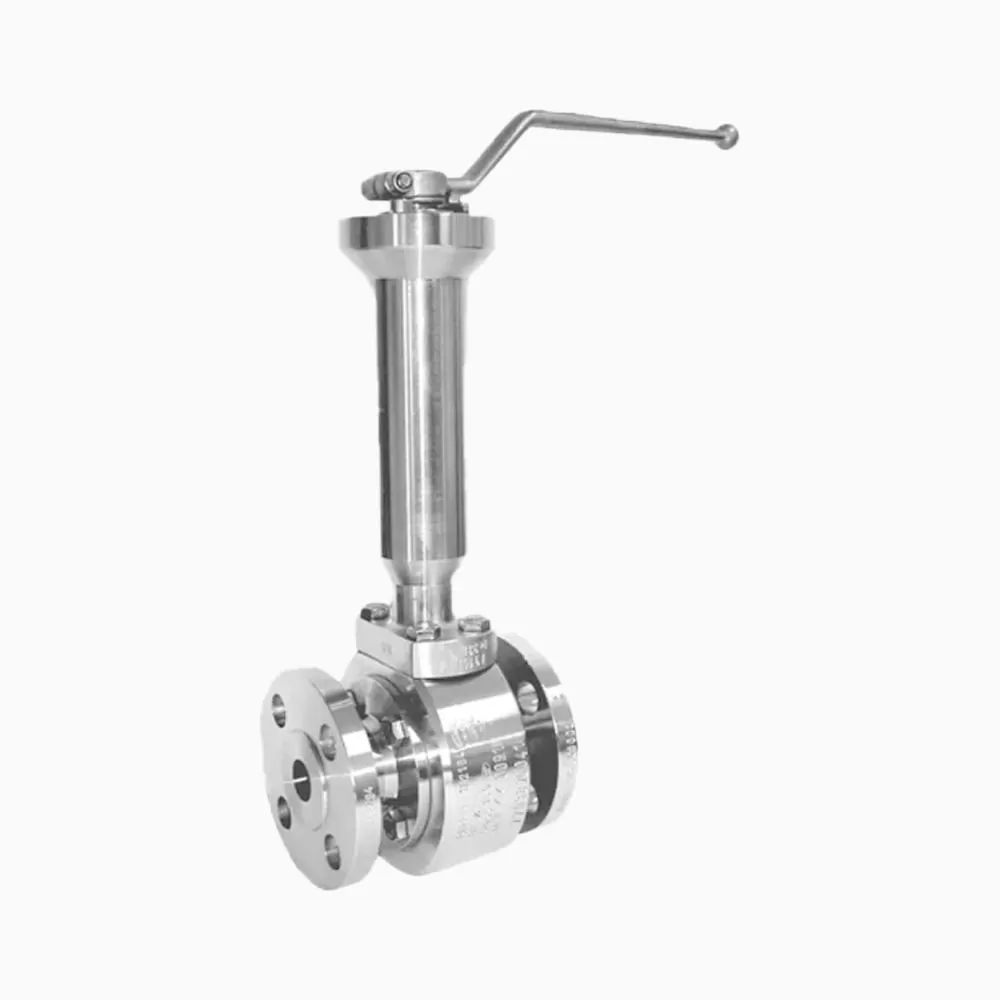

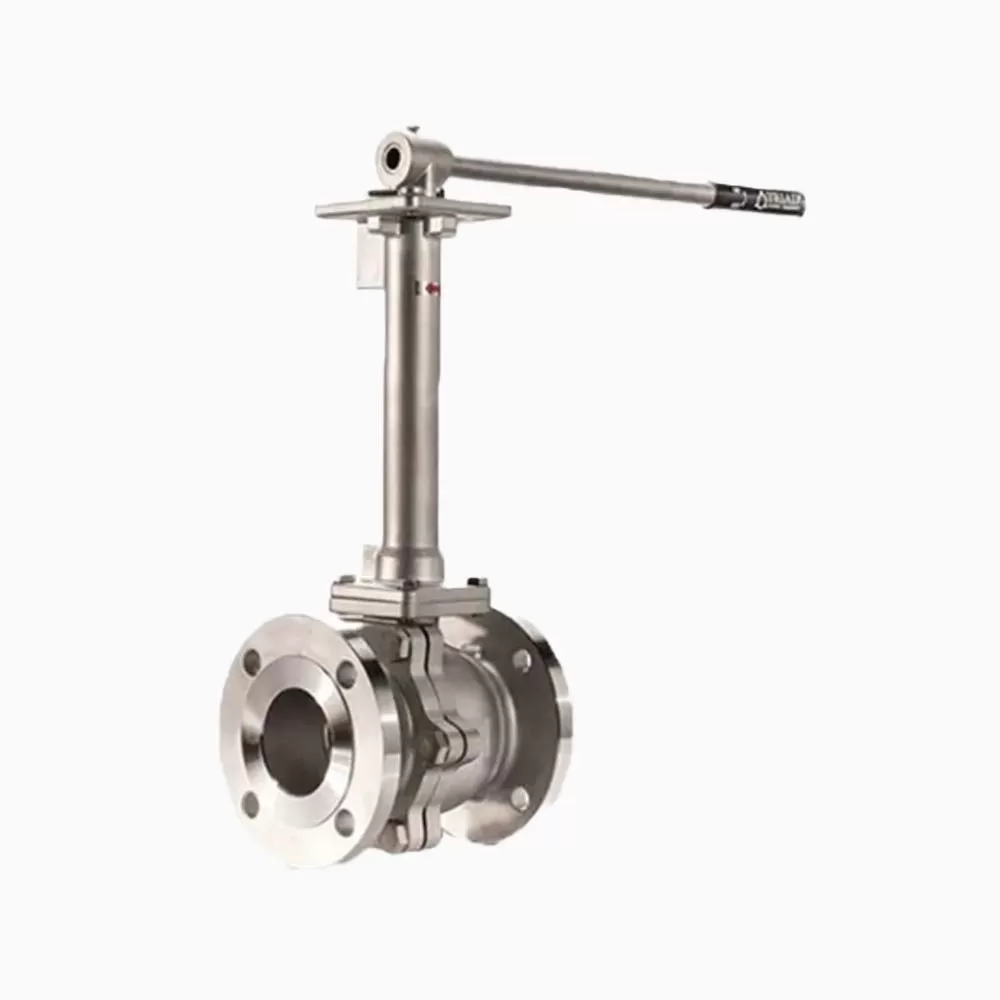

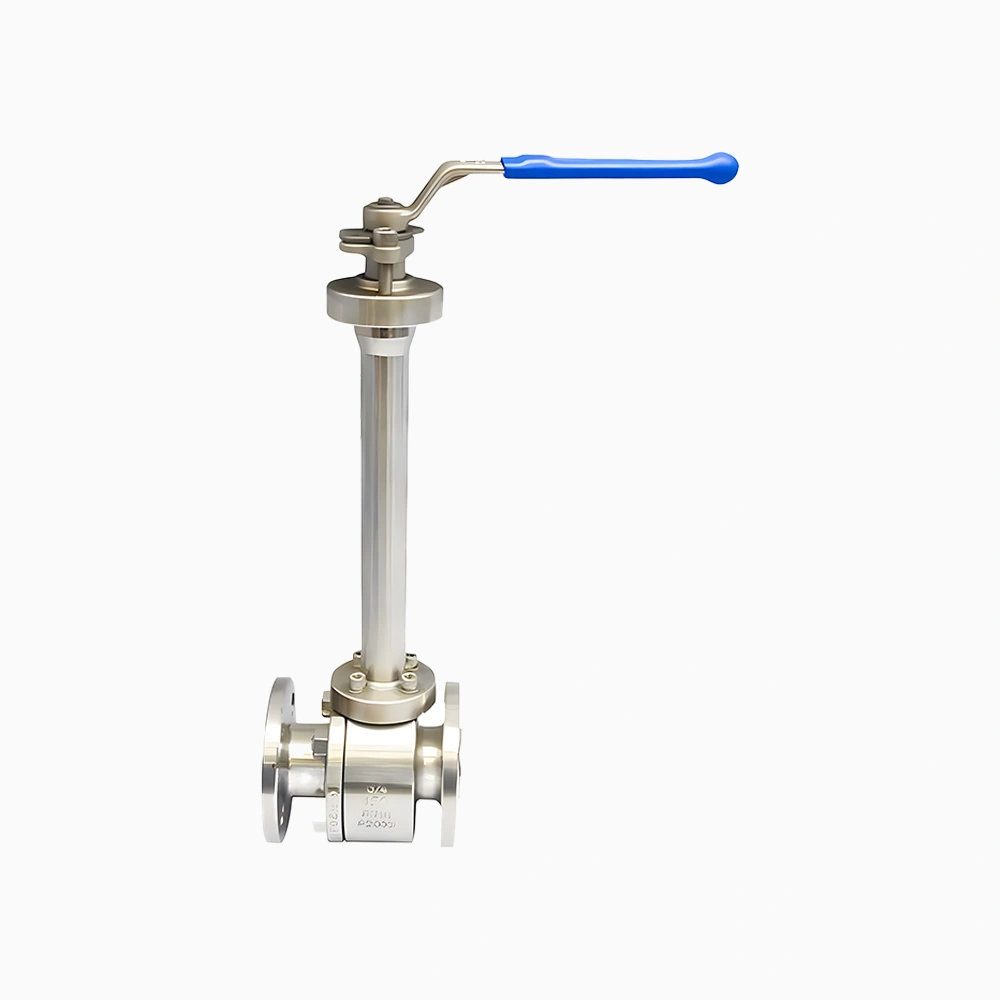

Cryogenic Forged Steel F316 DN20 150LB RF Flange Floating Ball Valve With Extended Stem
Valve Size
1“–10”
Pressure Class
150LB–600LB, PN10–PN64
Materials
WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A
Design and Manufacturing Standards
API 6D， API 608，ASME B16.34，ISO 17292，BS5351，
Face to Face Standards
ASME B16.10, BS 558, BS12982, ISO 5752
Flange Dimension Standards
ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627
Pressure Test Standards
API598 API 6D BS12569
Fire Safety Test Standards
API 6FA API 607
Quality/Product Certifications
ISO9001, ISO14001, ISO18001
Fugitive Emissions
ISO 15848-1, API 622
NACE
NACE MR 0175
Valve operator options
Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.
Shutoff Class
API 598 (Zero Leakage), API 6D
Bore
Full Bore, Reduced Bore
Process Connection Types
SW, NPT, BW , RF, RTJ
Product Overview
The pneumatic valve can obtain higher speed, has explosion-proof performance, and meets more complex working conditions, the original pneumatic valve has the advantages of simple structure, convenient maintenance, economy and long service life, the pneumatic valve transmission overload will not be dangerous, to avoid the occurrence of accidents, so that the work is more safe and environmentally friendly.
The pneumatic valve can be used to control air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media and other types of fluid flow, and can better serve various conditions
Newway pneumatic valve can provide various brands of actuators and accessories to meet the requirements of customers and working conditions at all levels. The diversity of choice is the performance of strength. At the same time, we can get the most favorable price through various channels. Reduce customer time and efficiency.
Newway has the most perfect installation and debugging and perfect after-sales service team. They are familiar with the performance and debugging of various brands, so that the pneumatic valves can reach the best state and solve the worries of customers.
A three-piece ball valve is made of three easy-to-remove components that are connected with bolts, which makes it friendly for cleaning.
A great benefit of a 3-pc ball valve is that you only have to remove the piece at the center when cleaning the line. Three-piece ball valves are typically manufactured using investment cast and designed to withstand pressures up to 1000 psi. It’s suitable for various solid, liquid, and gas applications.
