- 2”
- 150LB
- F316
- API600/API602/API6D
- API598
- RF FLANGE
- ASME/ANSI B16.5
Product Overview

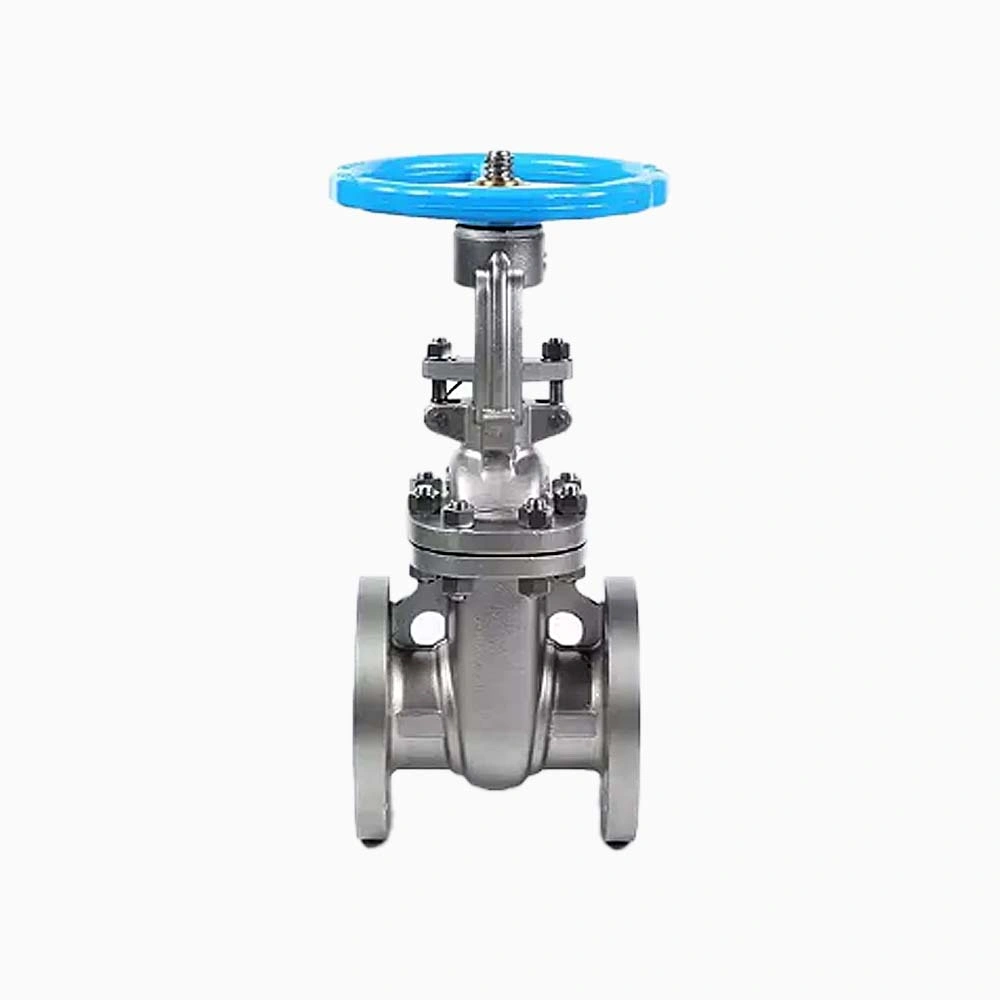

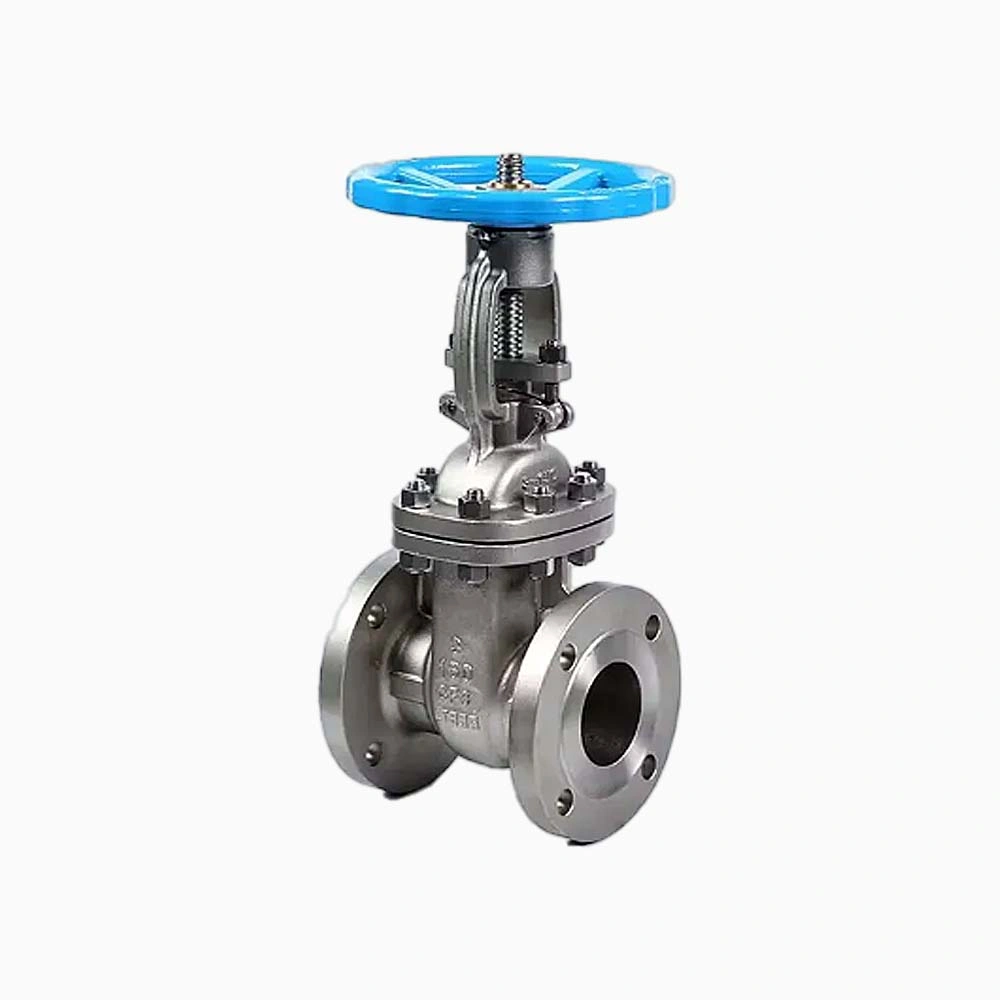

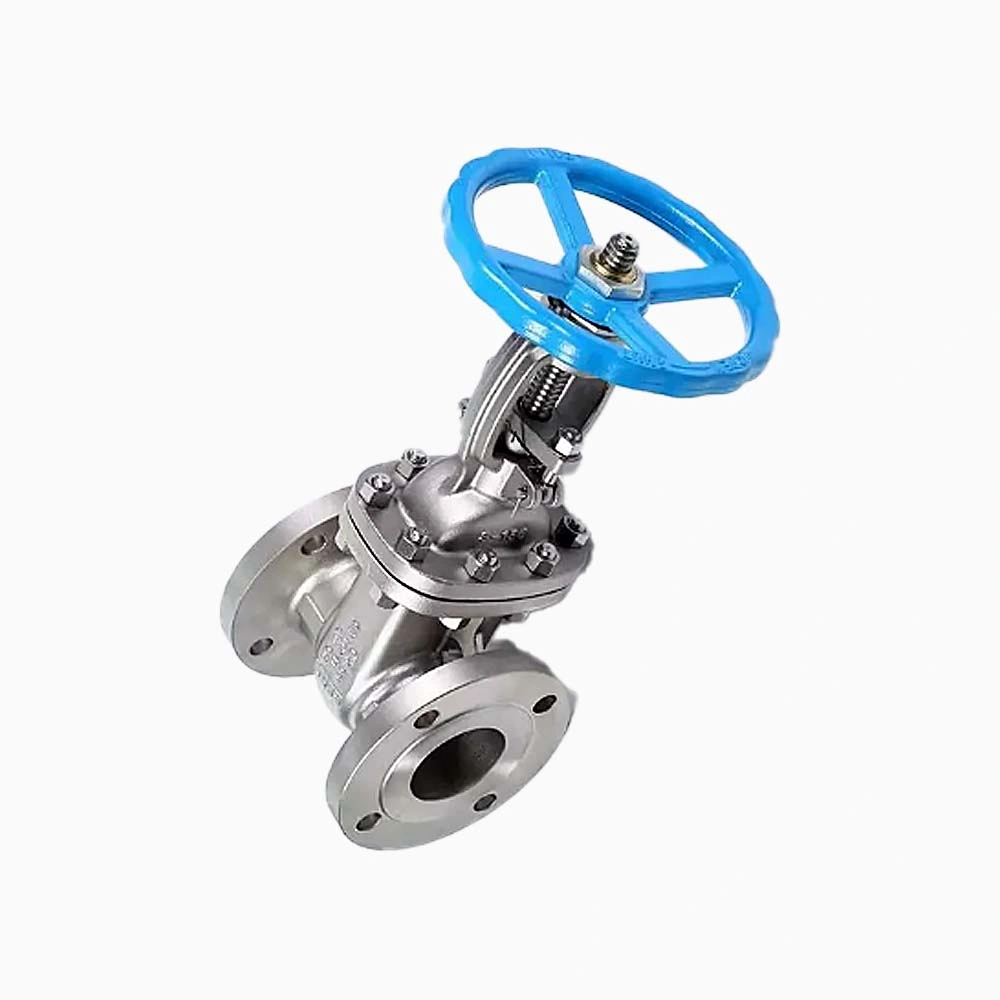

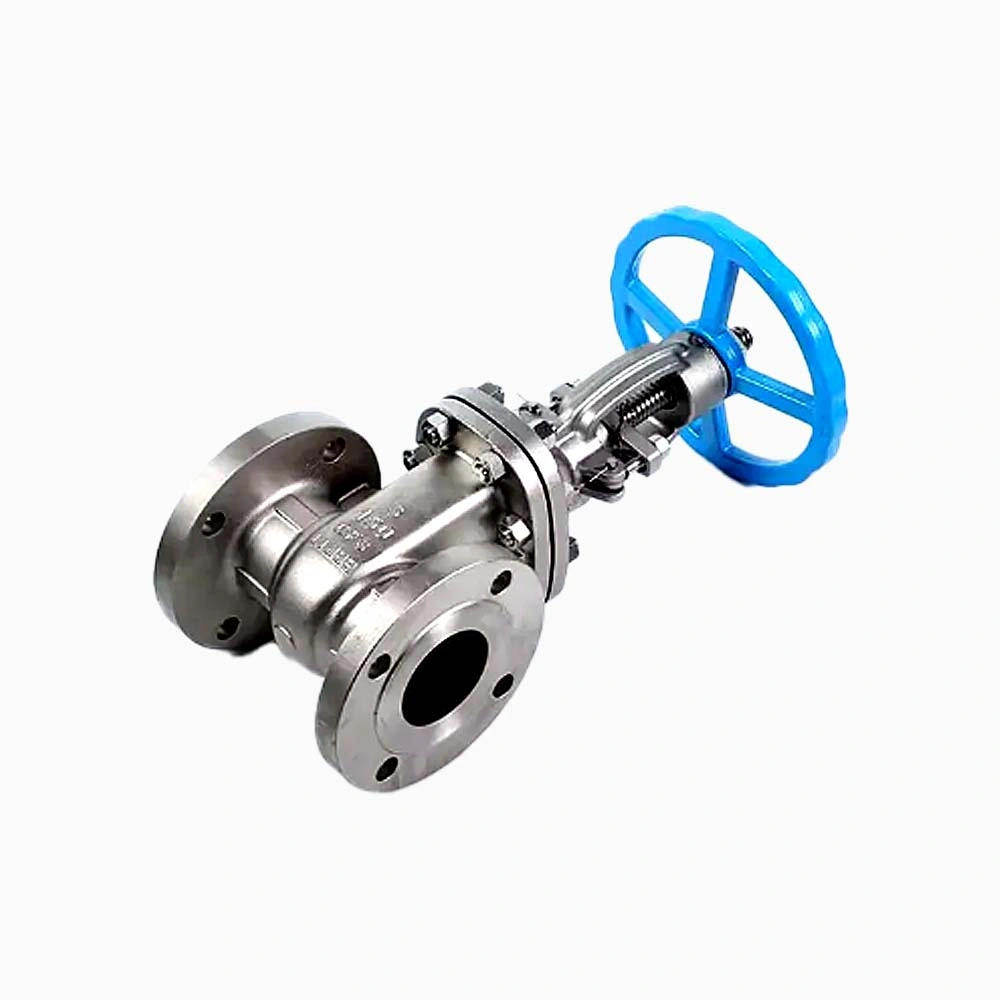

Forged Steel F316 2” 150LB RF FLANGE Gate Valve
Designed for use in high-temperature steam and water, this multipurpose gate valve can be used in a wide variety of general-purpose applications including vents, drains and isolation of compressors, condensers, heaters, pumps, water lines, heat exchangers, bypass lines, flash tanks, control valves, etc.
Specification
|
Valve Size |
1/4 “–2”, DN10–DN50 |
|
Pressure Class |
150LB–2500LB, PN16–PN420 |
|
Materials |
Carbon Steel: A105, LF2, Stainless Steel: F304, F304L, F316, F316L, Duplex: F51, F55, Alloy: F1, F5, F5A, F9, F11, F22 |
|
Design and Manufacturing Standards |
API602, ASME 16.34, BS 5352, BS 6364 |
|
Face to Face Standards |
API 602 |
|
Flange Dimension Standards |
SW Socket welding ends according to ASME B16.11, |
|
Pressure Test Standards |
API 598 |
|
Fire Safety Test Standards |
– |
|
Quality/Product Certifications |
ISO9001, ISO14001, ISO18001 |
|
Fugitive Emissions |
ISO 15848-1, API 622 |
|
Valve Operator Options |
Hand wheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator |
|
Shutoff Class |
API 598 (Zero Leakage), API 6D |
|
Bore |
Full Bore, Reduced Bore |
|
Process Connection Types |
SW, NPT, BW, RF, RTJ |
