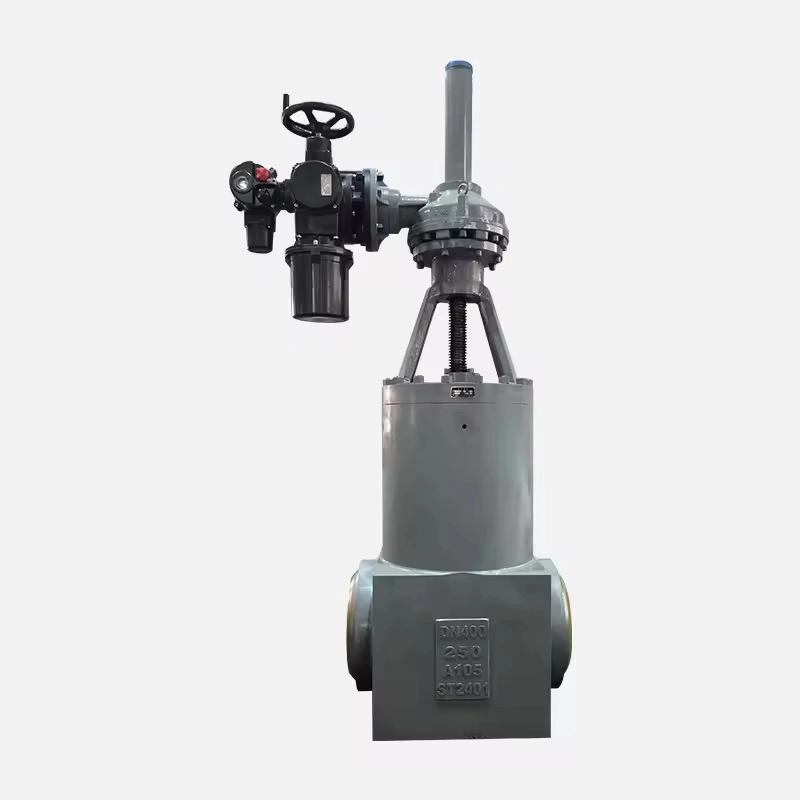

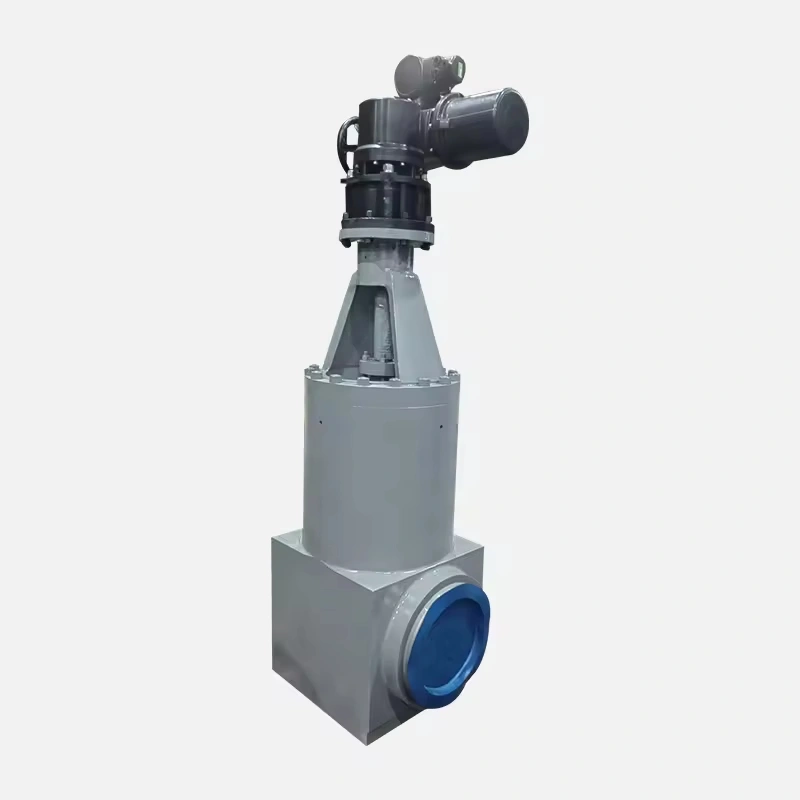

Self-Sealing Integral Free Forging Power Station Gate Valve
I. Product Overview: Reliable Fluid Control for Extreme Conditions
Newwway’s self-sealing integral free forging power station gate valve is designed for high-temperature and high-pressure conditions in power, petrochemical, and metallurgy industries. The valve body uses integral free forging with a forging ratio ≥5:1, combined with a pressure self-sealing structure that relies on medium pressure for dynamic sealing, eliminating leakage risks from traditional flange connections. Compliant with ASME B16.34 and API 600, it operates stably between -29℃~540℃ and Class 150~Class 2500, suitable for intercepting water, steam, oil, and natural gas. Core advantages lie in the high strength of forged bodies, reliability of self-sealing, and customized design for extreme conditions.
Specification
|
Execution standards |
API, JIS, DIN, BS, ASTM, ANSI, GB, JB, NB, HG |
|
Pressure range |
Class150~Class2500Lb(PN16-PN420) |
|
Size range |
NPS1/2 “to NPS72” (DN15mm to DN1800mm) |
|
Material scope: Forgings |
A105, F91,F11,F22, F5a, F6, LF1,LC2,12Cr1MoV, F36, F304, F316, F321H |
|
Material scope: Castings |
WCB, LCB, LCC,WB36, WC6, C5, WC9, C12A, 20CrMOV, CF8, CF8M, 4A, 5A |
|
Operate Type |
Manual, electric,pneumatic, gear |
|
Valve type |
Power station valves, gate valves, globe valves, check valves |
|
Application |
power plants,petrochemicals,refining, natural gas, metallurgy |
|
Connection type |
Flange, welding, thread, FM, BW, SW |
|
Customization |
OEM/ODM/OSM/OBM |
II. Key Attribute Parameters: Comprehensive Technical Specifications
|
Parameter Category |
Technical Indicators |
|
Nominal Diameter Range |
NPS 1/2″~NPS 48″ (DN15~DN1200), covering full-size needs from instrument lines to main steam pipes |
|
Pressure Class |
Class 150, 300, 600, 900, 1500, 2500 (PN16~PN420), adaptable to different pressure systems |
|
Execution Standards |
Design: ASME B16.34, API 600, BS 1873; Face-to-Face: ANSI B16.10; Welding: ANSI B16.25 |
|
Material System |
– Body/bonnet: A105, F22, F91, WC6, WC9, CF8M, etc.; |
|
Operation Modes |
Manual (with handwheel/gearbox), electric (explosion-proof optional), pneumatic, hydraulic, supporting remote control integration |
|
Connection Types |
Butt Weld (BW), Flanged (RF/RTJ), Threaded, compliant with ANSI B16.5 and other international standards |
|
Temperature Range |
Carbon steel ≤425℃, alloy steel ≤540℃, stainless steel ≤200℃, low-temperature steel (LCB) down to -196℃ |
