- DN50-DN300
- Pneumatic
- Water
- Stainless Steel
- ANSI BS DIN JIS
- 0.4-0.7MPa
- -20℃~80℃
Specification

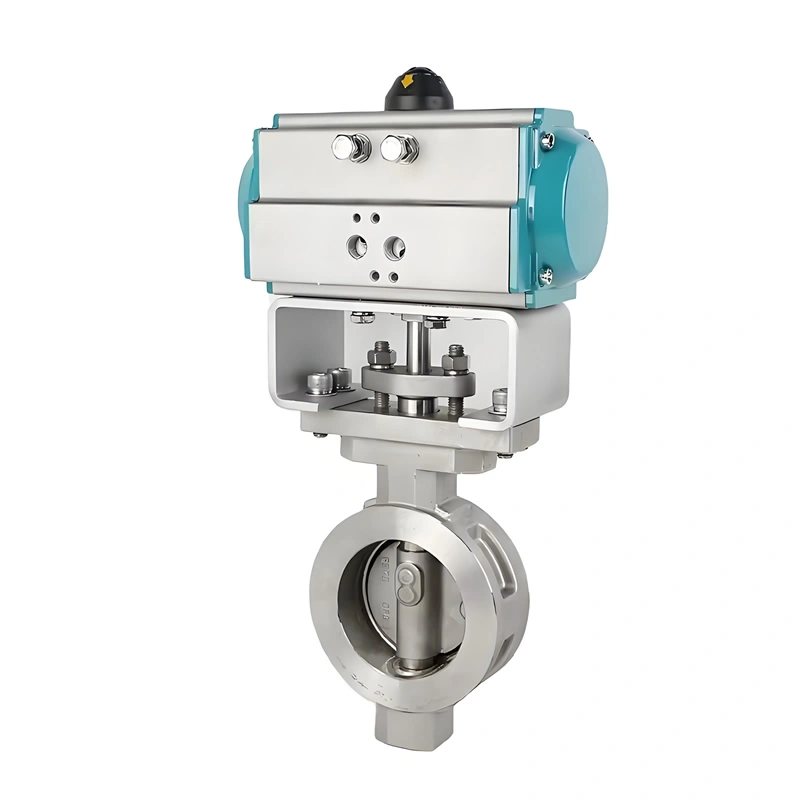

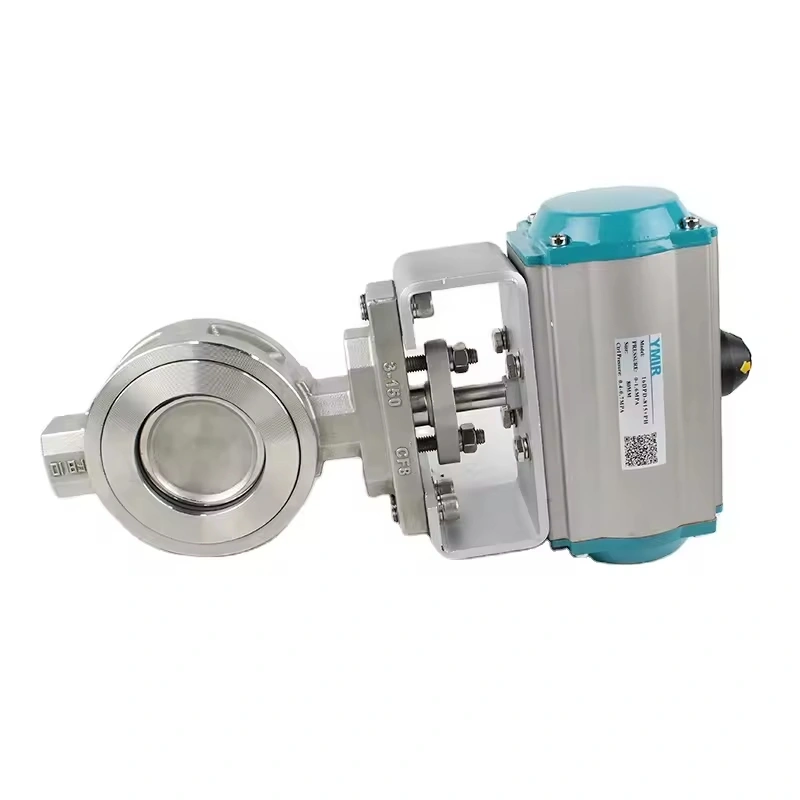

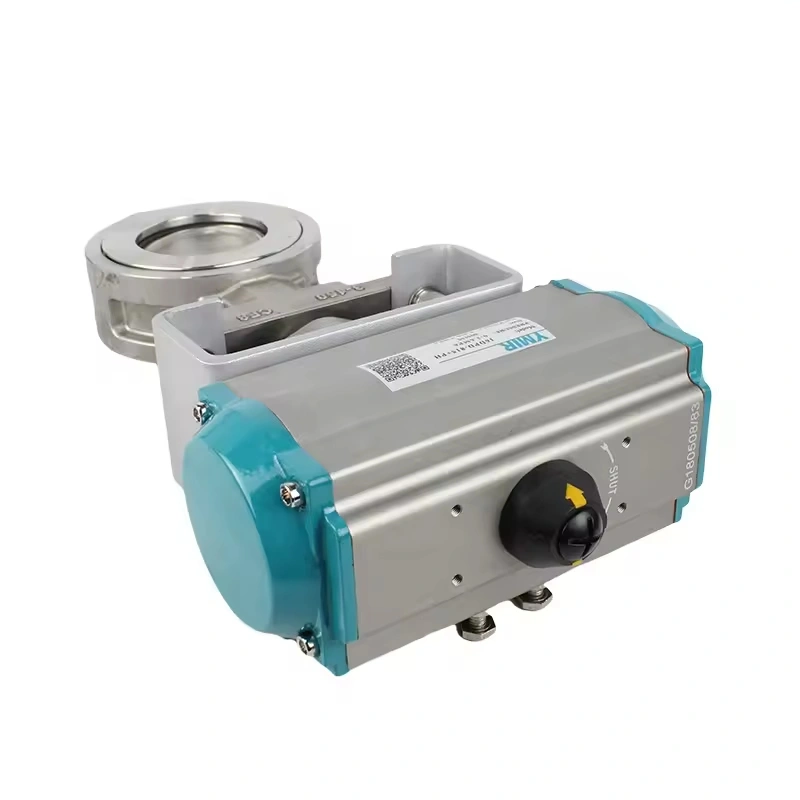

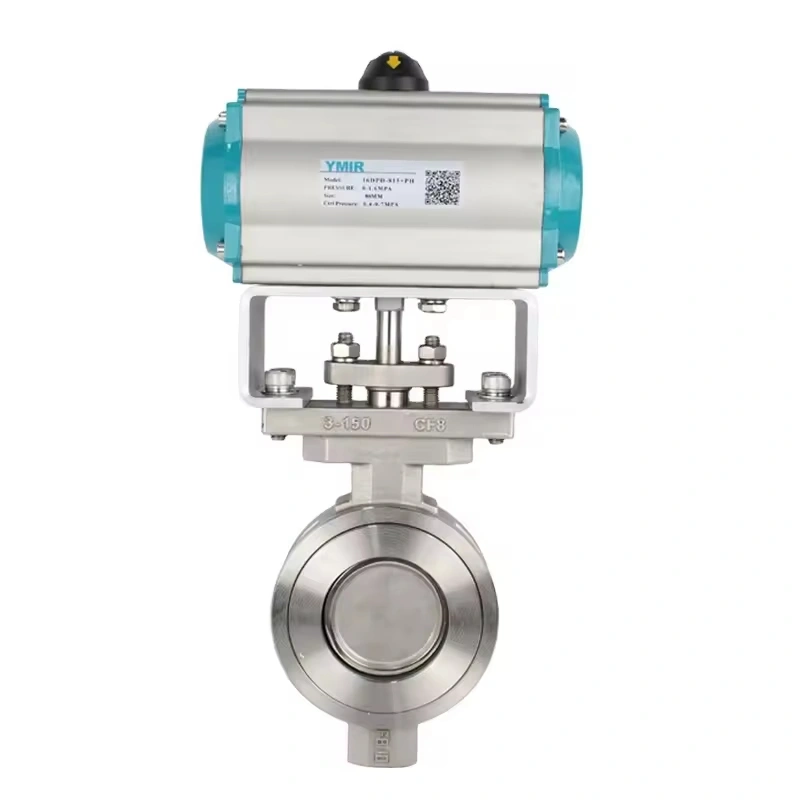

Double Acting Double Eccentric Pneumatic butterfly Valve for Steam Pipe and Steam Pipe in Valve
In high-cycle applications requiring rapid isolation and precise modulation, traditional valves struggle with wear and response lag. TIANYU’s double-offset pneumatic butterfly valve—crafted from CF8M stainless steel with ISO 5211-compliant actuators—delivers zero-friction sealing, millisecond actuation, and corrosion immunity, setting new standards for chemical processing, power generation, and automated fluid systems.
Assembly & Validation
|
Process |
Standard |
Acceptance Criteria |
|
Torque Calibration |
ISO 5211 |
≤45 Nm @ DN300 |
|
Seat Deformation Test |
API 598 Annex F |
≤0.1% permanent set |
|
Cycle Endurance |
MSS SP-67 |
250,000 cycles @ 25°C |
|
Fugitive Emissions |
ISO 15848-1 |
Class BH (≤50 ppm methane) |
Technical Superiority: Beyond Standard Butterflies
|
Parameter |
Newway Double-Offset |
Concentric Competitor |
|
Seal Wear Rate |
0.003mm/10k cycles |
0.12mm/10k cycles |
|
Operating Torque |
22% of theoretical |
65% of theoretical |
|
Temperature Range |
-196°C to 425°C |
-29°C to 150°C |
|
Bubble-Tight Shutoff |
DN600 @ 150LB |
Max DN300 @ 150LB |
Product Overview
Newway Double-Offset Pneumatic Butterfly Valve: Precision Flow Control for Demanding Industrial Processes
In high-cycle applications requiring rapid isolation and precise modulation, traditional valves struggle with wear and response lag. TIANYU’s double-offset pneumatic butterfly valve—crafted from CF8M stainless steel with ISO 5211-compliant actuators—delivers zero-friction sealing, millisecond actuation, and corrosion immunity, setting new standards for chemical processing, power generation, and automated fluid systems.
