Electric 3-Way Ball Valve: Versatile Solution for Industrial Fluid Automation

I. Technical Overview

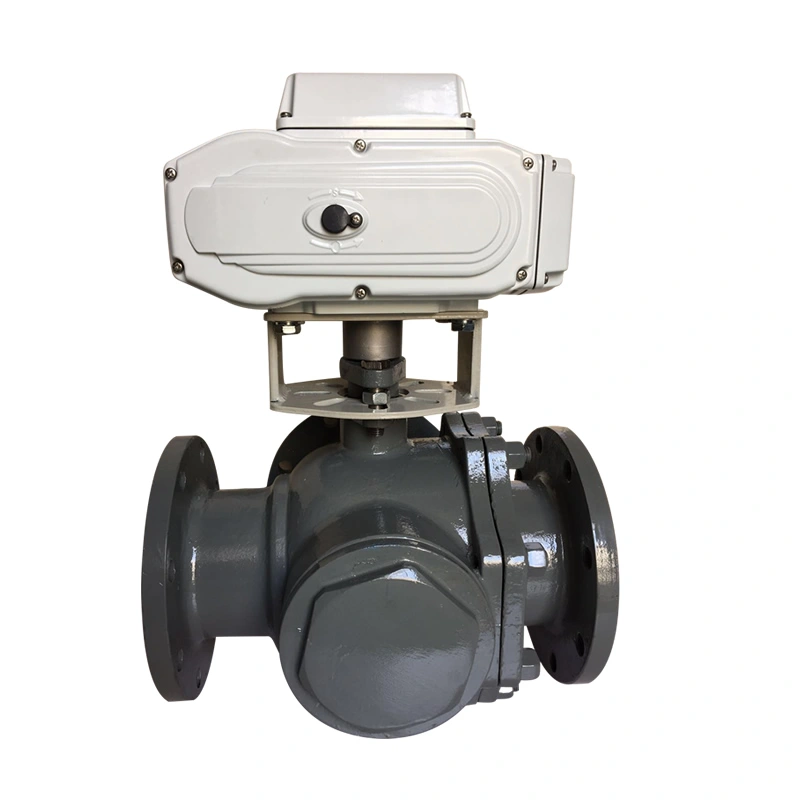

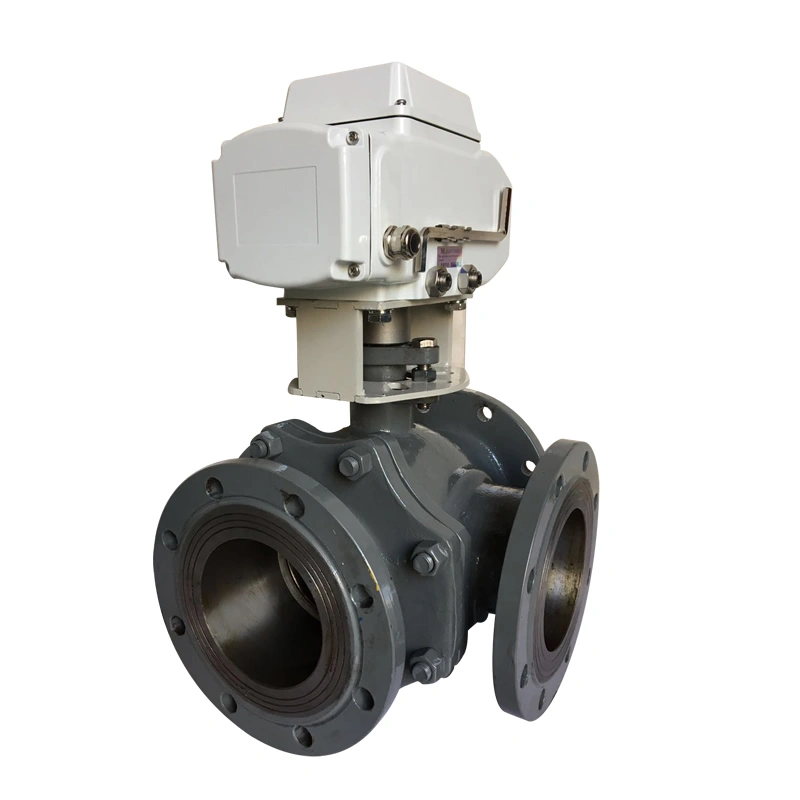

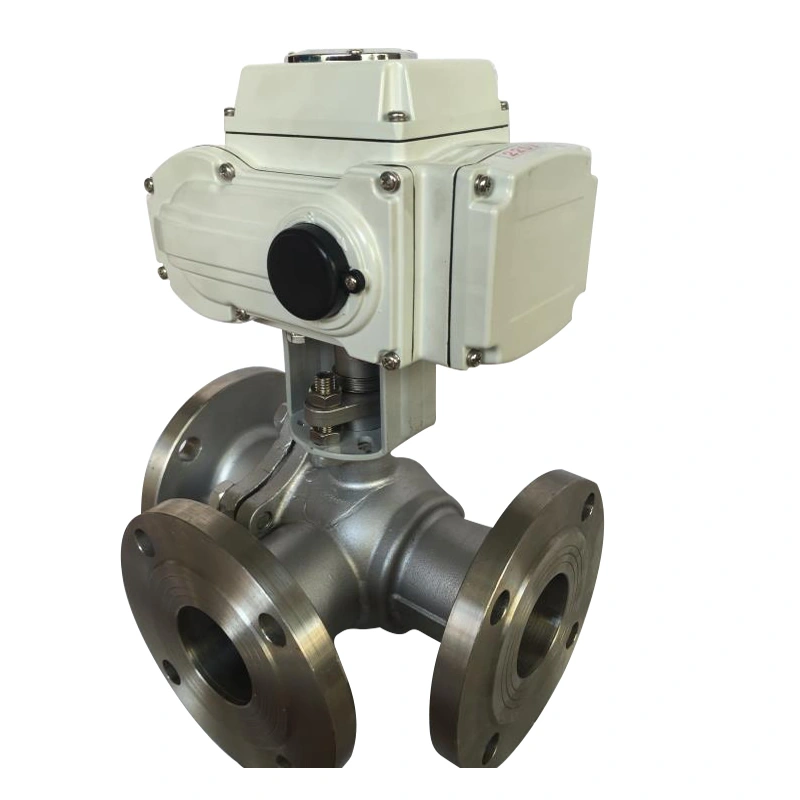

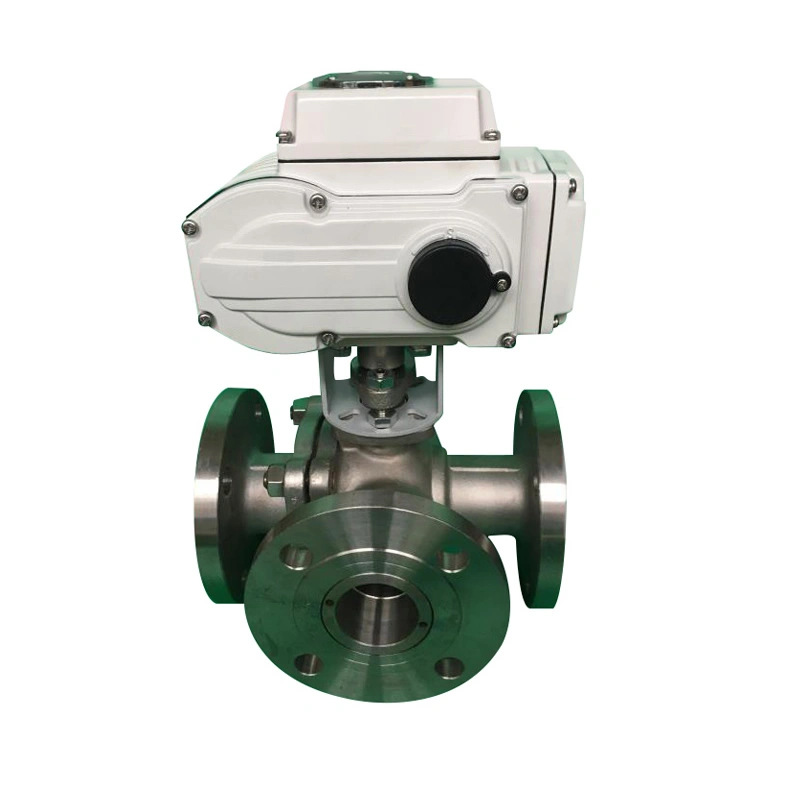

Electric 3-way ball valve is a high-end automated device designed for medium diversion, confluence, and direction switching in industrial pipelines, covering DN15~DN600 (1/2″~24″) with T-type and L-type structures. The T-type enables arbitrary connection of three channels for splitting/mixing, while the L-type achieves 90° direction switching between two channels, suitable for water, gas, oil, and other media. Made of WCB cast steel or CF8M stainless steel, with PN16~PN25 pressure rating and low-to-medium temperature resistance, the electric actuator supports 220VAC, 24VDC, and other power inputs, widely used in petrochemical, HVAC, and water supply systems.

II. Core Product Features

(A) T/L Dual-Mode 3-Way Structure

T-Type Diversion/Confluence: Three-channel design supports “1-inlet 2-outlet” or “2-inlet 1-outlet” for medium distribution/mixing, ideal for chemical reactor material switching and boiler feedwater systems;

L-Type Direction Switching: Vertical connection of two channels for medium redirection (e.g., hot standby pipeline switching), with ±0.5° switching accuracy;

Low Flow Resistance: Flow path complies with ASME B16.34, resistance coefficient ≤0.9, reducing pressure loss by 35% compared to globe valves, saving ~15,000 kWh annual pumping energy.

(B) Efficient Electric Drive System

(C) Material & Structural Advantages

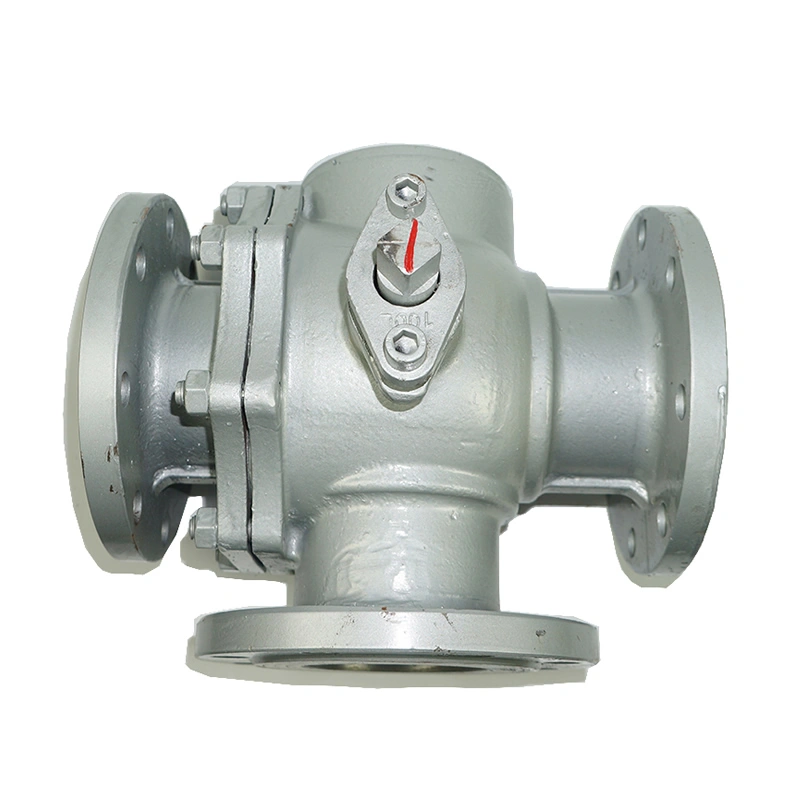

Body Material: WCB cast steel (tensile ≥485MPa) for standard applications, CF8M stainless steel (316L) for acid-alkali resistance in chemical media;

Sealing System: PTFE-reinforced seat + Viton fluoroelastomer seals, leakage ≤0.01% of Kvs, compliant with ISO 5208 Class IV;

Actuator Design: Anodized aluminum housing with built-in overload protection and limit switches, 100,000 cycles trouble-free operation.

III. Key Technical Attributes

Product Overview

IV. Manufacturing Processes & QC

(A) Precision Manufacturing

Body Forming:

WCB cast steel via resin sand casting, CF8M stainless steel via lost wax precision casting, UT-tested for internal defects (sensitivity ≥Φ2.0mm);

Body blanks annealed to relieve stress, machined surface roughness Ra≤12.5μm.

Core Machining:

T/L-type cores processed by 5-axis CNC, cut angle error ≤±0.5°, fit gap with seat ≤0.03mm for sealing precision;

Stainless steel cores electropolished (Ra≤0.8μm), 2x corrosion resistance improvement.

Actuator Assembly:

Modular motor-gearbox design, gear meshing gap ≤0.05mm, no-load noise ≤55dB;

Actuator connected to body via ISO 5211 standard bracket, installation error ≤1°.

(B) Quality Control

Pressure Test: 1.5x rated pressure hydrostatic test (30-min hold), air tightness test leakage ≤1×10⁻⁹m³/s;

Life Test: Sampled for 50,000 cycles with ≥95% sealing retention (Far beyond the industry 30,000 cycles);

Certifications: CE certified, some models comply with API 598, support third-party inspection (SGS, BV).

Application

V. Application Scenarios

Petrochemical: T-type for distillation column feed diversion, L-type for reactor material redirection; 316L lasts 8 years in sulfurous media;

HVAC: DN200 T-type for chilled water flow regulation, 18% energy saving with temperature control; IP65 for humid machine rooms;

Water Supply: L-type as pump inlet/outlet diverter, quick response to water level changes; PN25 suitable for high-rise building high-pressure water supply.
