- 5”(DN125)
- Full Bore
- PN16
- CF8
- Pneumatic Actuator
- API 6D
- API598
- RF FLANGE
- EN1092-1,ASME/ANSI B16.5
Specification

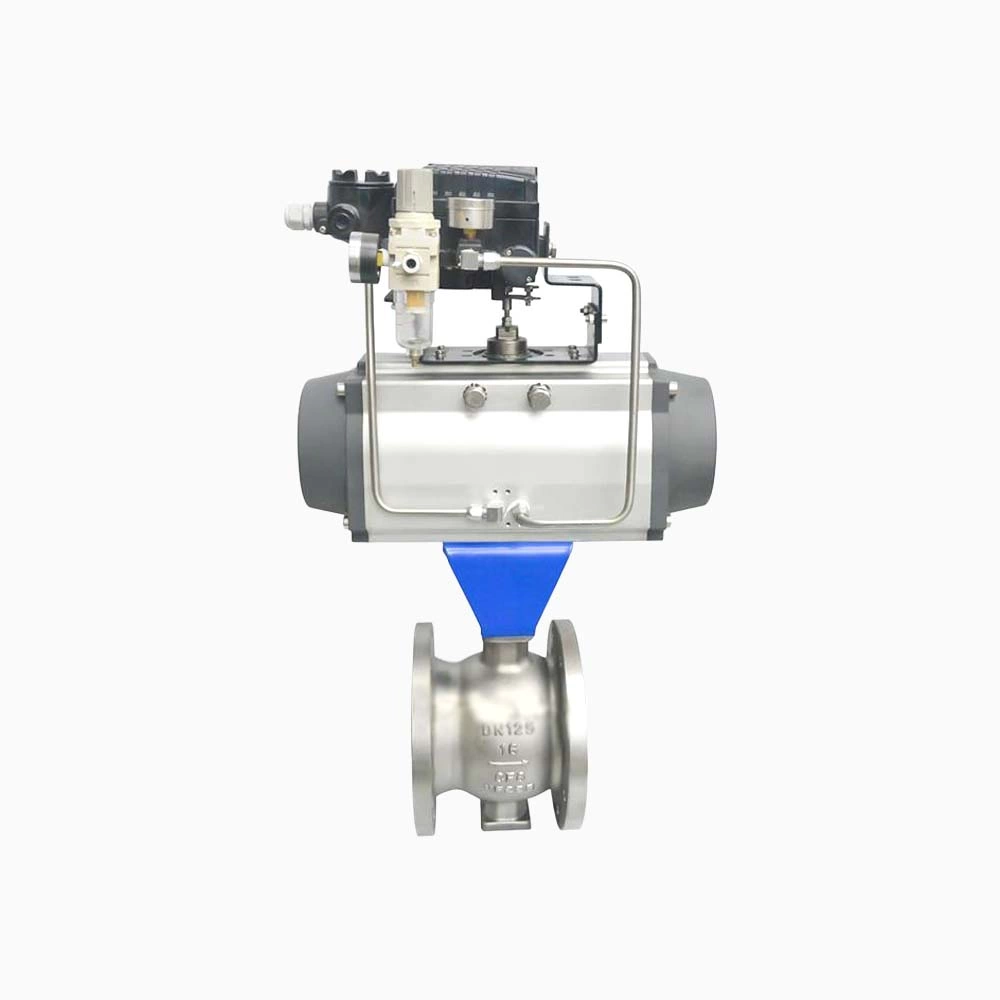

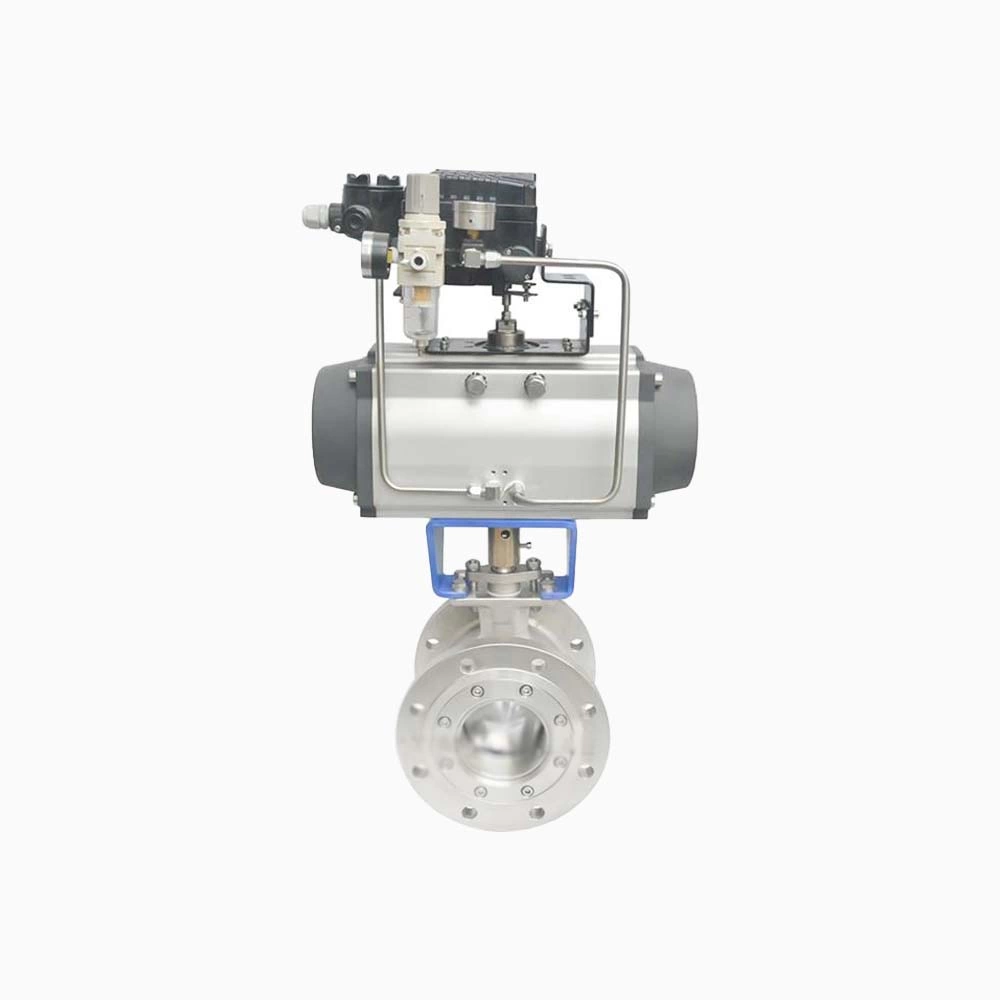

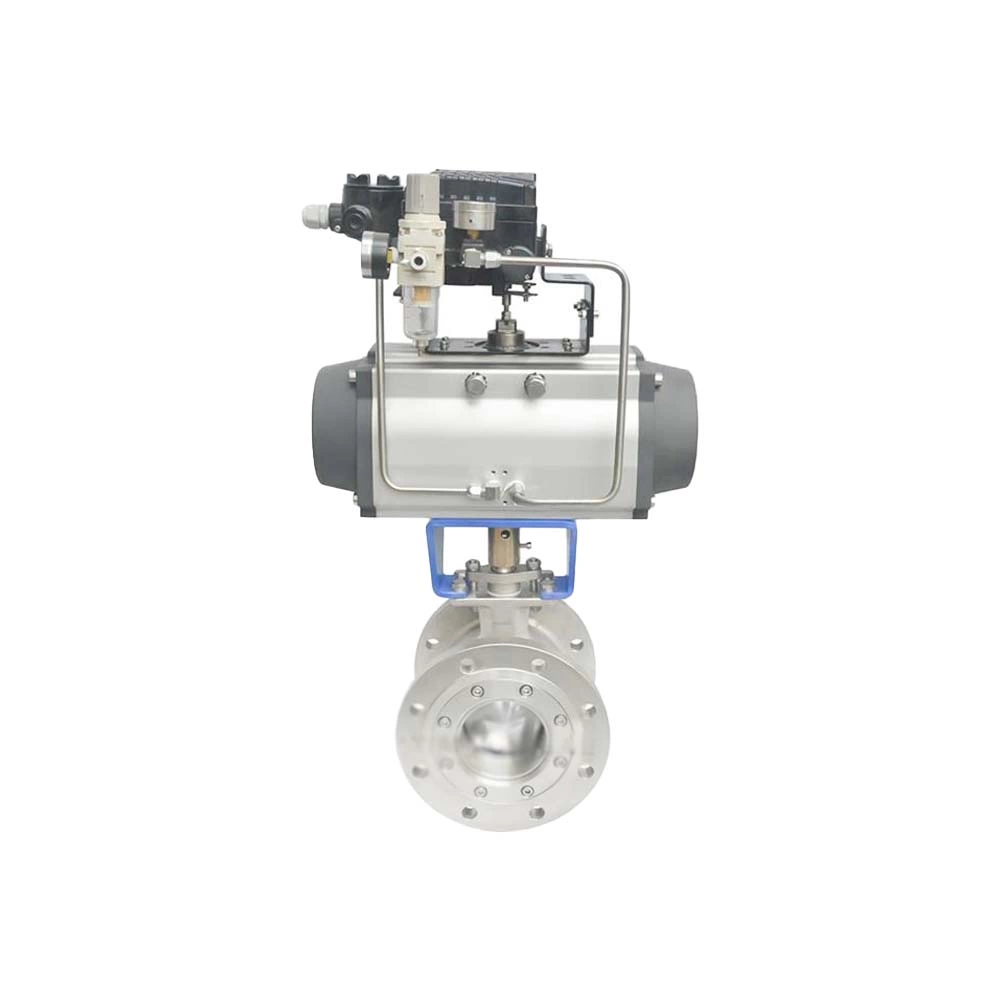

Cast Steel CF8 DN125 PN16 RF Flange V-Port Ball Valve With Pneumatic Actuator
|
Valve Size |
1“–10” |
|
Pressure Class |
150LB–600LB, PN10–PN64 |
|
Materials |
WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A |
|
Design and Manufacturing Standards |
API 6D， API 608，ASME B16.34，ISO 17292，BS5351， |
|
Face to Face Standards |
ASME B16.10, BS 558, BS12982, ISO 5752 |
|
Flange Dimension Standards |
ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627 |
|
Pressure Test Standards |
API598 API 6D BS12569 |
|
Fire Safety Test Standards |
API 6FA API 607 |
|
Quality/Product Certifications |
ISO9001, ISO14001, ISO18001 |
|
Fugitive Emissions |
ISO 15848-1, API 622 |
|
NACE |
NACE MR 0175 |
|
Valve operator options |
Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
|
Shutoff Class |
API 598 (Zero Leakage), API 6D |
|
Bore |
Full Bore, Reduced Bore |
|
Process Connection Types |
SW, NPT, BW , RF, RTJ |
Product Overview
The pneumatic valve can obtain higher speed, has explosion-proof performance, and meets more complex working conditions, the original pneumatic valve has the advantages of simple structure, convenient maintenance, economy and long service life.
The pneumatic valve transmission overload will not be dangerous, to avoid the occurrence of accidents, so that the work is more safe and environmentally friendly
The pneumatic valve can be used to control air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media and other types of fluid flow, can better serve various conditions
Newway pneumatic valve can provide various brands of actuators and accessories to meet the requirements of customers and working conditions at all levels. The diversity of choice is the performance of strength. At the same time, we can get the most favorable price through various channels. Reduce customer time and efficiency.
Newway has the most perfect installation and debugging and perfect after-sales service team. They are familiar with the performance and debugging of various brands, so that the pneumatic valves can reach the best state and solve the worries of customers.
